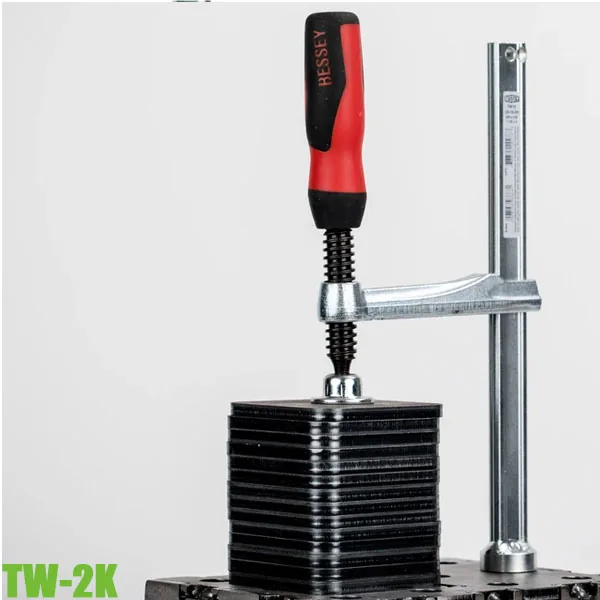

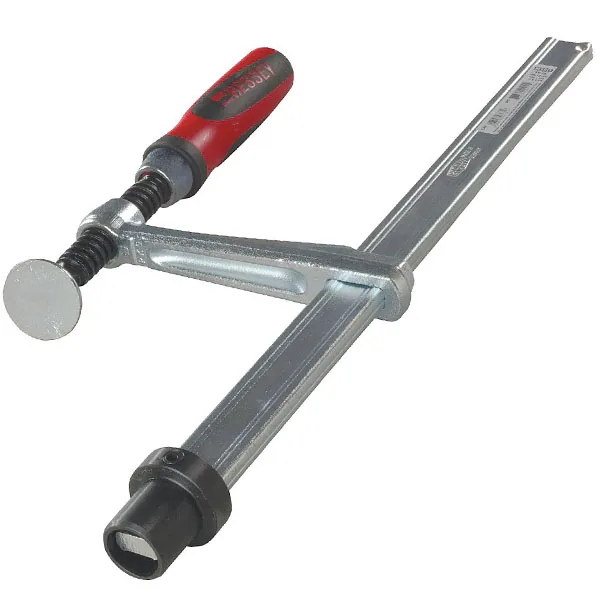

Clamping element for welding tables TW

Product details

• TW16 + TW22: Clamping force up to 3,000 N, TW28: Clamping force up to 5,000 N
• Precise, individual clamping
• Tempered profile and sliding arm for sprung and elastic clamping
• Various design versions:
• High quality 2-component plastic handle and tommy bar with rounded ends – each with smooth-running trapezoidal threaded spindle and tool-free pressure plate replacement
• Lever handle with an indexing mechanism for controlled, fast and vibration-proof clamping
• TW22: Compatible with Barth and Beck lift tables

Product description

Flexible throat depth

BESSEY TWV clamping elements for welding tables not only have infinitely adjustable throat depth, but are also available in 3 handle variants.

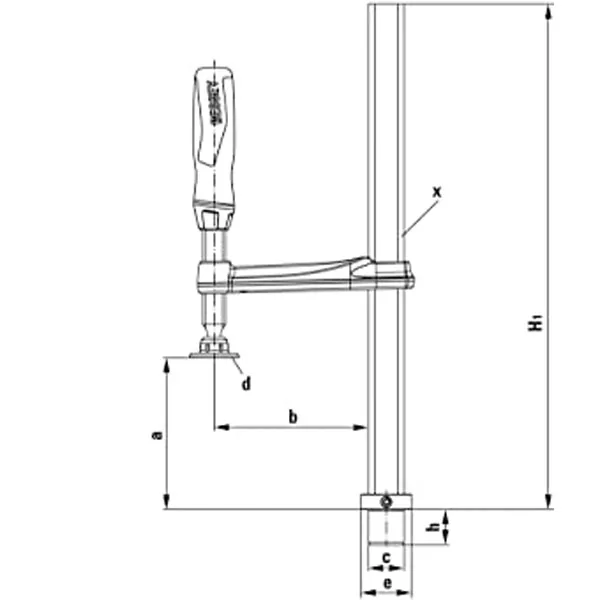

100, 120 mm or 140 mm throat depth

On BESSEY TW clamping elements, you can choose among 3 handle variants and 3 throat-depth variants.

Heavy‐duty, custom design

The TWM28 clamping element has a heat‐resistant special pressure plate with sintered steel insert, which can be pivoted up to 35°. On the TW28GRS gripping arm variant the spindle is located on the outside, which enables – among other things – free access to the work area.

Perfect for railings

Whether the workpiece is round, oval or square, the TWVAD Vario table clamping attachments are ideally suited

Applying the quick clamp

Thanks to the TWA-STC adapter and the appropriate TWX extension, BESSEY toggle clamps with a horizontal base plate can also be rapidly applied to welding tables.

Diagonal and horizontal clamping

The tilting adaptor TW28AV used in conjunction with the extension TW28X allows angled or horizontal clamping in a range from -52deg. to +52deg.

Areas of application

Metal construction

Locksmith work

• Self-welding from the specialists in clamping tools

Safety information

Use the product only in its original condition.

Use the product only for its intended purpose. Improper use can cause personal injury or property damage.

• Wear safety glasses to protect your eyes.
• Wear work or assembly gloves to protect your hands.
• Wear safety footwear to protect your feet.
• Thew handle must always be free of oil and grease to prevent slipping.
• Keep the product out of reach of children.
• Small parts must not be swallowed or inserted into body openings.
• Check the product for damage before each use and make sure that all moving parts are working properly.
• A damaged product must not be used.
• Follow the care instructions for each product – see vinatools.com.
• Use only original BESSEY spare parts
• The clamping tool must not be used for lifting, pulling or leaning.
• The clamping tool must not be used to secure cargo during transportation.
• The clamping tool may only be tightened by hand without any additional aids.
• The clamping tool must not be used for permanent installation.
• Regularly check that the end stop is working properly when using clamps.

Material / Surface

Rail and sliding bracket made of tempered steel, galvanised

Spindle with trapezoidal thread in tempered, rolled steel, phosphated

• Handle made of 2-component plastic
• Toggle made of steel, galvanised
• Pressure plate made of steel, phosphated
• Connecting elements made of steel, galvanised or phosphated

Care instructions

Regular maintenance is necessary – only then can a secure hold be guaranteed (no slipping of the sliding bracket).

Clean the rails with solvent.

• Always keep the rail free of grease, oil or dried glue, waxes and silicone-based release agents.
• Clean and oil the spindle regularly.
• Clean and oil the pressure plate regularly (not with lever version).
• If the rail is shiny, roughen both narrow sides with emery cloth (100 grain).
• Clean and oil the pawl regularly (lever version only).

Accessories / Suitable for

• Multi angle pad VAD | For adaptation to round, oval and angular workpieces in particular - Infinite angle adjustment from 60° inner to 60° outer - Suitable for original BESSEY malleable cast iron screw clamps TG, all-steel screw clamps GZ and GMZ from 100 mm throat depth and clamping elements for welding tables TWV and TW | https://vinatools.com/static/bessey-mirror/pages/multi-angle-pad-vad-1e9e97f3ba.html
• Workbench adapter TW16AW | Accessories for BESSEY TWV and TW clamping elements with 16 hole system - Suitable for all common workbenches with a hole system - Can be used without tools | https://vinatools.com/static/bessey-mirror/pages/workbench-adapter-tw16aw-d294be6137.html
