Diamond core drilling machine

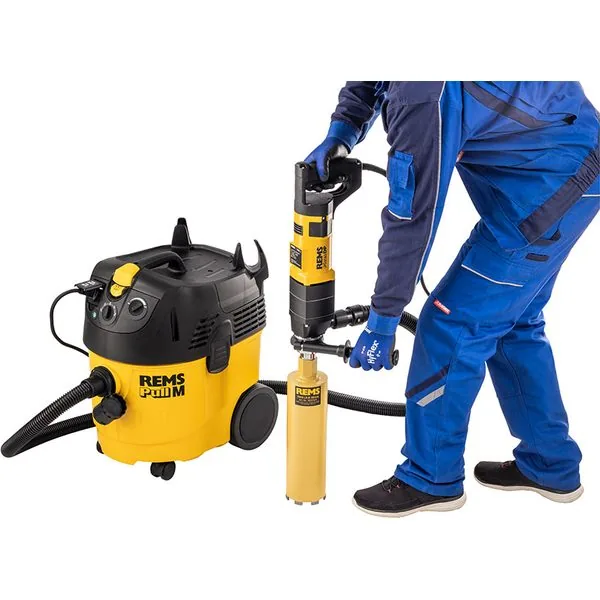

REMS Picus DP dry diamond core drill, drive unit 180003 R220

★ 0.0 (0 reviews)
Sold: 0
Views: 0
Imported from: Germany
Origin: Made in Italy

The REMS Picus DP dry core drill 180003 R220 is the DP drive unit, supplied in a carton. 2200 W micro-pulse dry core drill, 880 rpm, 21,120 pulses per minute, reinforced concrete up to Ø162 mm, Ø202 mm on a stand, no water needed. Takes REMS TDKB LS dry crowns with UNC 1¼ thread.

SKU: 180003 R220
€3,074.06
Stock status: Out of stock
Indicative price
Description

The REMS Picus DP dry core drill 180003 R220 is the DP drive unit, supplied in a carton. It does not include the stabiliser, drilling start aid or steel case of the Basic-Pack. The DP is built for drilling without water in finished homes, offices and workshops. The Picus DP uses a 2200 W motor with a load speed of 880 rpm. Its key feature is micro-pulse technology: a 24-tooth disc delivers 21,120 pulses per minute under load. This lets dry crowns cut well in hard materials without water. It drills steel-reinforced concrete up to Ø162 mm, or Ø202 mm on a stand. The drive unit weighs 7 kg and has integrated dust extraction.

Before ordering, check the largest hole size, the wall or floor material and whether water can be used on site. These three points decide between a drive unit, a Basic-Pack or a set with a stand.

REMS Picus DP dry core drill 2200 W, drive unit

Item 180003 R220 includes:

  • Picus DP drive unit 2200 W with integrated suction rotor
  • Carton

Picus DP features

  • 2200 W universal motor, load speed 880 rpm.
  • Switchable micro-pulse technology: 28,800 pulses/min idle, 21,120 pulses/min under load.
  • Built for dry drilling without water, ideal in finished interiors.
  • Integrated suction rotor with connection for REMS Pull 2 M or other suitable vacuum cleaners.
  • Safety slip clutch against blocking.
  • Multifunction electronics: soft start, idle speed limiting, overload and blocking protection.
  • Ø60 mm clamping throat for the REMS Simplex 2 or REMS Titan drill stand.

Crowns and drill stands

The machine takes REMS TDKB LS laser-welded dry crowns, 320 mm drilling depth. The UNC 1¼ thread is the REMS standard, so one set of crowns fits every Picus. Compatible stands: REMS Simplex 2 stand (up to Ø202 mm) or REMS Titan stand (up to Ø300 mm, tilting 45°).

Which Picus DP version to choose

Dust when drilling dry

Drilling concrete, masonry and stone releases fine quartz dust that is harmful to inhale. EN 60335-2-69 requires at least a class M safety extractor. REMS Pull 2 M meets this class and connects directly to the Picus suction port.


Specifications

  • Motor power: 2200 W
  • Voltage: 230 V, 50–60 Hz
  • Load speed: 880 rpm
  • Micro-pulse: 24-tooth disc, 21,120 pulses/min under load
  • Concrete, steel-reinforced concrete: up to Ø162 mm, Ø202 mm on a drill stand
  • Masonry and other materials: up to Ø202 mm
  • Crown connection: UNC 1¼ male, G ½ female
  • Clamping throat: Ø60 mm
  • Drilling mode: dry, hand held or on a stand
  • Dust extraction: integrated suction rotor, for class M extractors
  • Drive unit weight: 7 kg
  • Compatible crowns: REMS TDKB LS dry crowns, drilling depth 320 mm
  • Scope of supply: Picus DP drive unit 2200 W with integrated suction rotor; Carton
