Magnetic Drilling Machine

Magnetic drilling machine, 100 mm, 220 V. Euroboor ECO.100S+/CT2 - 1/8, M3

★ 0.0 (0 reviews)
Sold: 0
Views: 0
Imported from: Netherlands
Origin: Made in China
Magnetic drilling machine, annular cutters max. dia 100 millimeter, power supply tension 220 - 240 Volt, power supply frequency 50 - 60 Hertz, rotation direction bidirectional.
SKU: ECO.100S+-CT2
€2,590.73
Stock status: Out of stock
Indicative price
Description

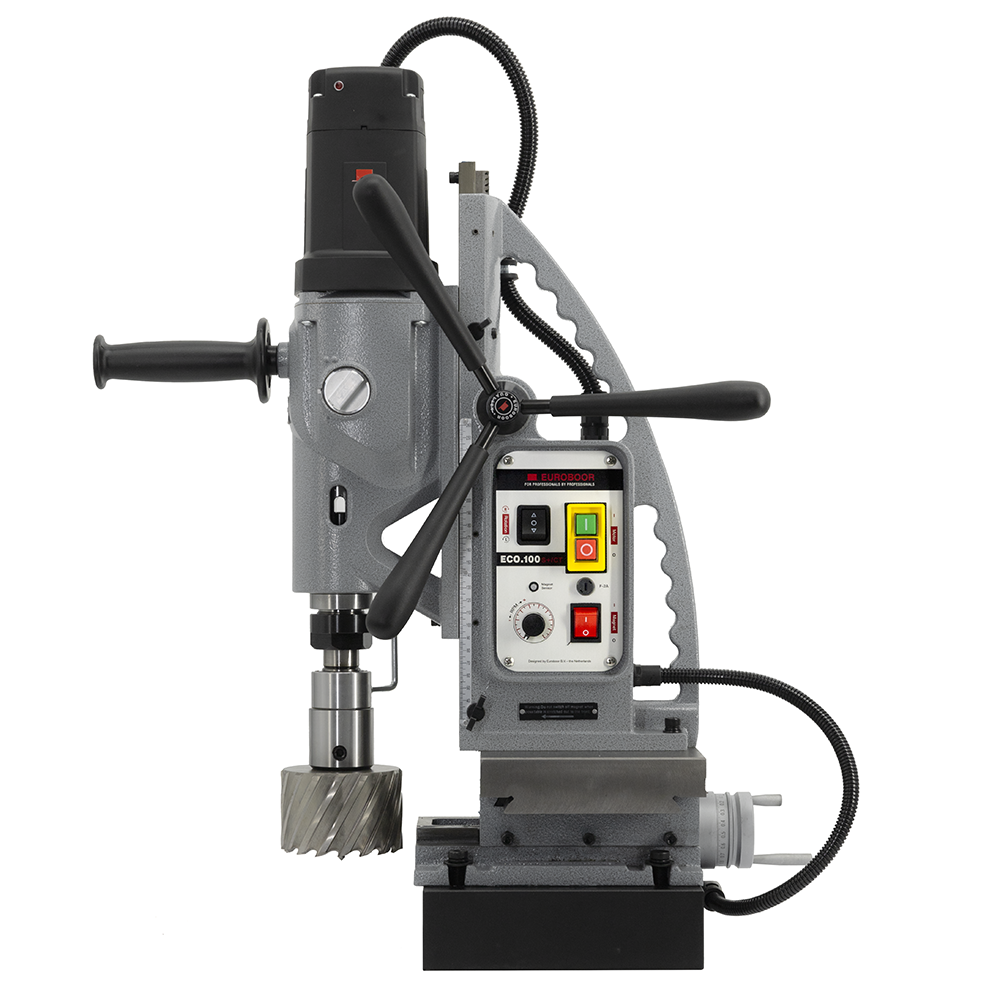

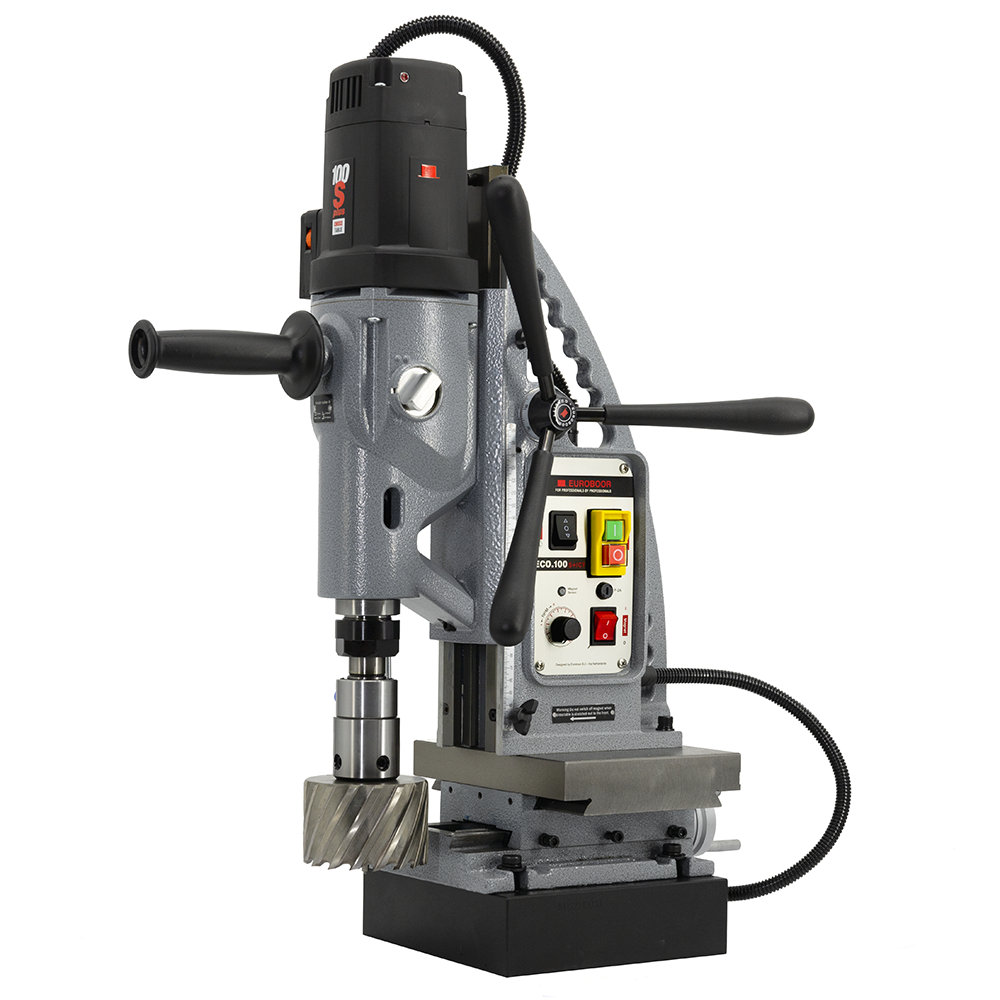

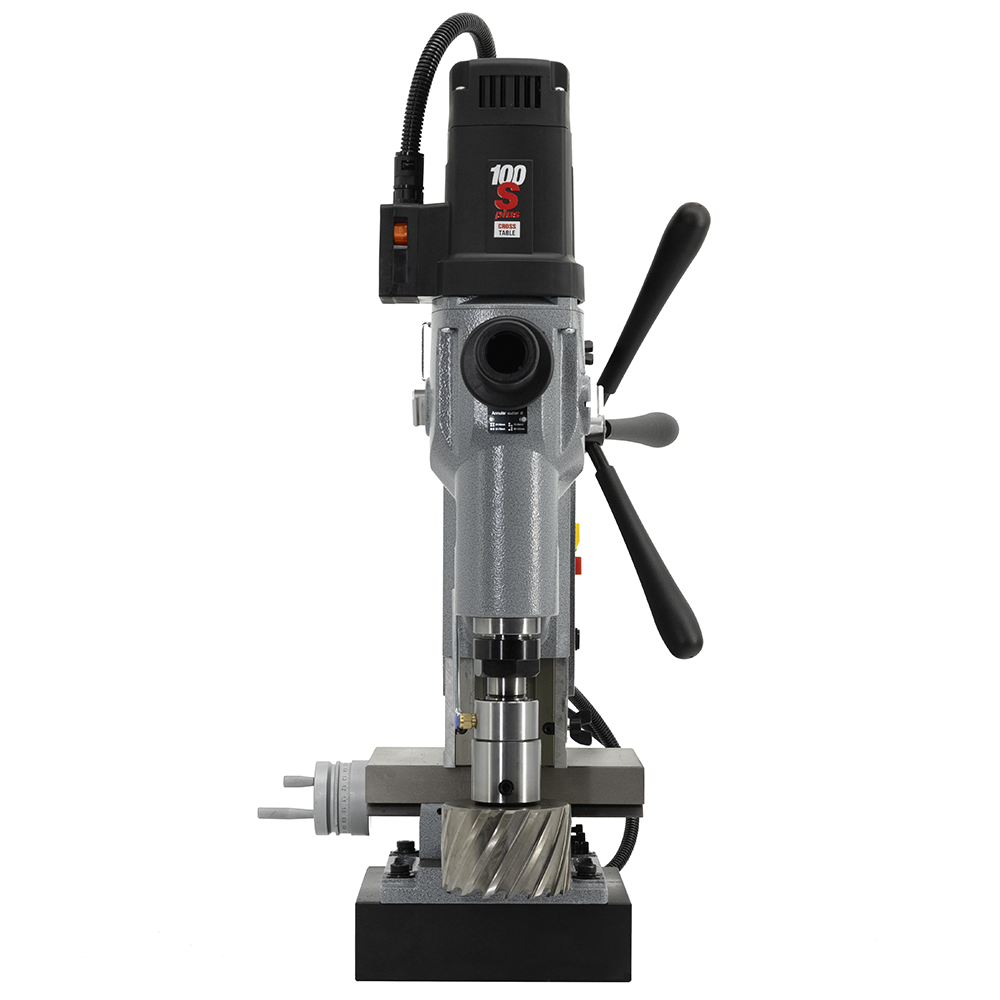

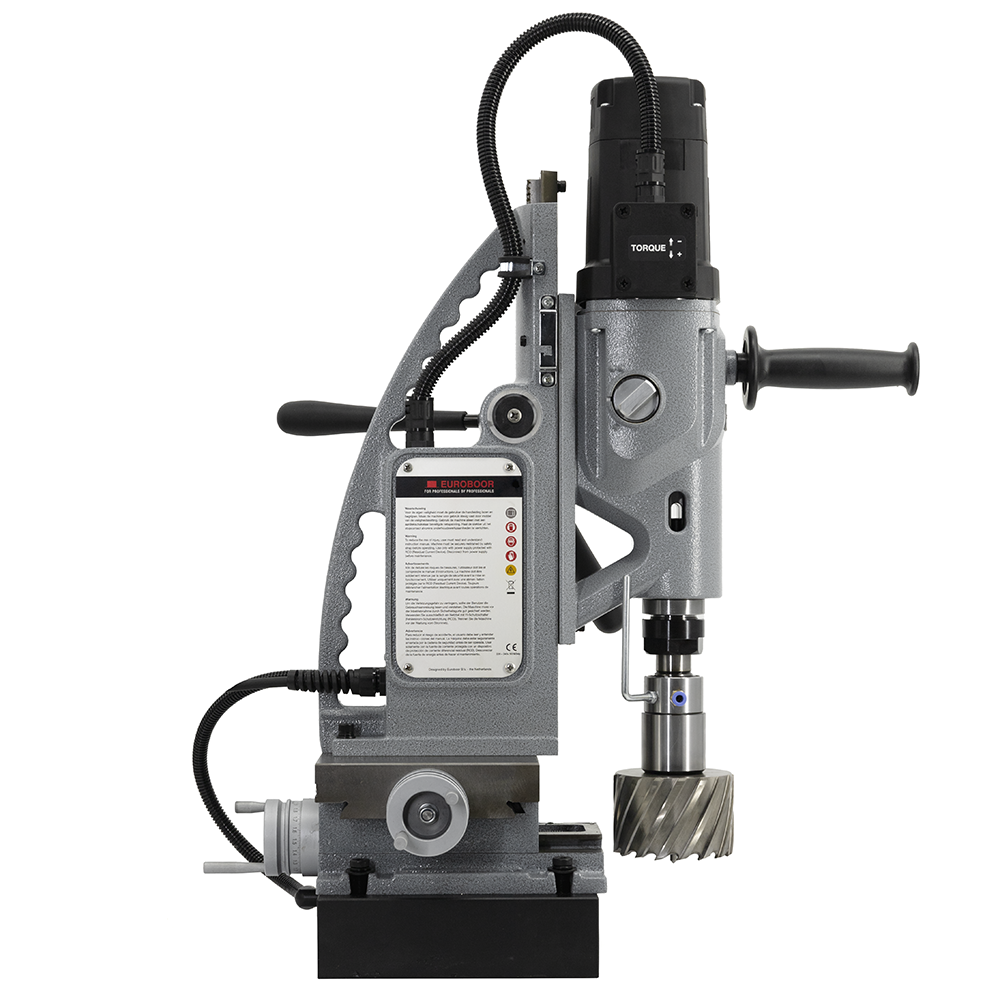

The Euroboor ECO.100S+/CT2 magnetic core drilling machine cuts holes up to ø 100 mm and is particularly suited for tapping and milling tasks that require high precision. The Cross Table provides exceptional control, allowing you to position the machine accurately across a range of 110 mm (x-axis) and 120 mm (y-axis) after the magnet is fixed to the surface.

The spindle, secured by a threaded retaining ring, ensures the strongest coupling to the motor, minimizing play during demanding operations and enhancing accuracy. With its dynamic positioning feature, you can efficiently create slots and handle more complex workpieces without switching tools.

The powerful 1,900 W motor, paired with an oil-lubricated four-speed gearbox and advanced electronics, ensures safe, reliable performance across various tasks.

EAN: 8720999137328

SpecificationValue
Order codeECO.100S+/CT2
EAN code8720999137328
minimum diameter threadinginch1/8
minimum diameter threading (millimeter)M3
maximum diameter threadinginch1 3/16
maximum diameter threading (millimeter)M30
minimum diameter annular cuttersinch7/16
minimum diameter annular cutters (millimeter)12
maximum diameter annular cuttersinch4
maximum diameter annular cutters (millimeter)100
minimum diameter countersinkinginch3/8
minimum diameter countersinking (millimeter)10
maximum diameter countersinkinginch4 1/8
maximum diameter countersinking (millimeter)105
minimum diameter twist drillsinch1/16
minimum diameter twist drills (millimeter)1
maximum diameter twist drillsinch1 1/4
maximum diameter twist drills (millimeter)32
connection 1 modelinside
connection 1 sizeinch3/4
connection 1 size (millimeter)19.05
connection 2 morse taper / drill chuck classMT3
connection 1 typeWeldon
connection 2 modeloutside
connection 2 typemorse taper
strokeinch10 1/4
stroke (millimeter)260
magnet lengthinch8 11/16
magnet length (millimeter)220
magnet widthinch8 11/16
