Grinding manchine

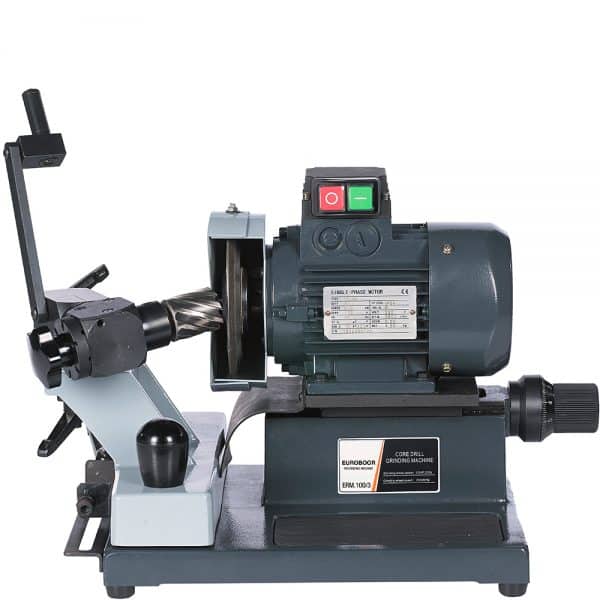

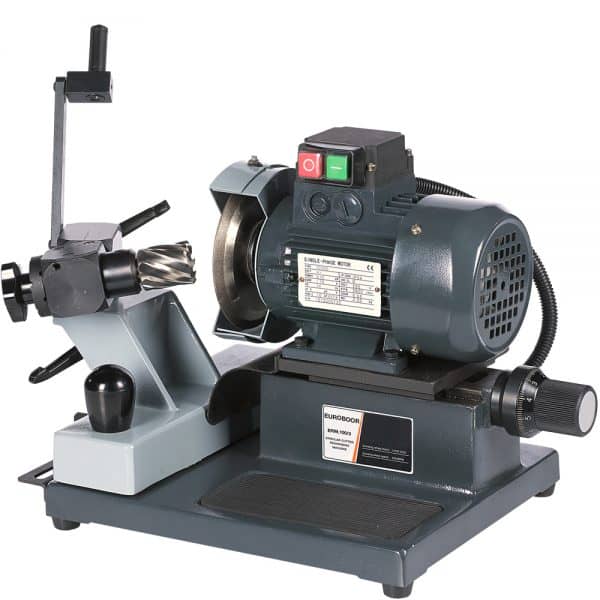

Resharpening machine, 220 V. Euroboor ERM.100/3 - 3/4, 19.05

★ 0.0 (0 reviews)
Sold: 0
Views: 0
Imported from: Netherlands
Origin: Made in China
Resharpening machine, power supply tension 220 - 240 Volt.
SKU: ERM.100-3
€2,330.28
Stock status: Out of stock
Indicative price
Description

For HSS cutters. The Euroboor ERM.100/3 sharpening machine sharpens HSS cutters between ø 12 mm (1/2″) and 44 mm (1 3/4″) in cutting depths between 25 mm (1″) and 55 mm (2 3/16″) with great ease. The laser guided cutter alignment ensures correct positioning of the cutting edge to the wheel where the easy angle adjustments makes alignment to the original geometry easy and simple. Standard supply: • CBN Grinding wheel (Resharping) for HSS - ERM3.0001 • Index plate T4/T8 & T5/T10 - ERM3.0009 • Index plate T6 & T7 - ERM3.0008 • Index plate T9 - ERM3.0010

EAN: 8718858034420

SpecificationValue
Order codeERM.100/3
EAN code8718858034420
connection 1 modelinside
connection 1 sizeinch3/4
connection 1 size (millimeter)19.05
connection 1 typeWeldon
connection 2 modelinside
connection 2 sizeinch1 1/4
connection 2 size (millimeter)31.75
connection 2 typeWeldon
length (millimeter)480
width (millimeter)300
height (millimeter)320
nett weight (kilogram)28
system of measurementmm (metric)
applicationresharpening
rotation speed gear 1 (rotations per minute)2800
motor power (Watt)250
power supply frequency (Hertz)50 - 60
power supply currentAC
power supply connectionplug according CEE 7/7
power supply sourcemains supply
power supply typeelectric
power supply tension (Volt)220 - 240
maximum noise emission (decibel)70

Specifications

  • Ứng dụng: mài sắc lại mũi khoan từ HSS
  • Phạm vi đường kính mũi khoan: 12-44mm (1/2 - 1 3/4 inch)
  • Độ sâu cắt: 25-55mm (1 - 2 3/16 inch)
  • Kết nối 1: chuôi Weldon 3/4 inch (19.05mm)
  • Kết nối 2: chuôi Weldon 1 1/4 inch (31.75mm)
  • Công suất động cơ: 250W
  • Tốc độ quay: 2800 vòng/phút
  • Điện áp: 220-240V AC
  • Tần số: 50-60Hz
  • Phích cắm: CEE 7/7
  • Mức độ ồn tối đa: 70 dB
  • Kích thước (D x R x C): 480 x 300 x 320mm
  • Trọng lượng tịnh: 28kg
  • Hệ đo lường: mm (metric)
  • Đá mài CBN tiêu chuẩn: ERM3.0001 (cho HSS)
  • Tấm định vị T4/T8 & T5/T10: ERM3.0009
  • Tấm định vị T6 & T7: ERM3.0008
  • Tấm định vị T9: ERM3.0010
