Diamond core drilling machine

REMS Picus S2-3,5 diamond core drill Set Titan 180030 R220

★ 0.0 (0 reviews)
Sold: 0
Views: 0
Imported from: Germany
Origin: Made in Germany

The REMS Picus S2-3,5 Set Titan combines the Basic-Pack with the Titan stand. 3420 W, the most powerful Picus, 320 and 760 rpm, Ø40–300 mm holes on a drill stand, dry or wet. Takes REMS diamond core crowns with UNC 1¼ thread.

SKU: 180030 R220
€5,982.76
Stock status: Out of stock
Indicative price
Description

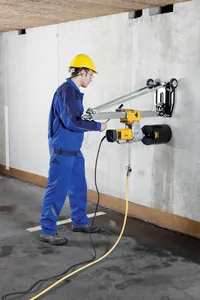

The REMS Picus S2-3,5 Set Titan combines the Basic-Pack with the Titan stand. The order number is 180030 R220. As the S2-3,5 runs on a stand only, this set is ready to drill without buying a stand separately. It suits large Ø150–300 mm holes in infrastructure, factories and basements. The Picus S2-3,5 is the most powerful Picus, with a 3420 W motor and two speeds of 320 and 760 rpm. It works on a drill stand only, not hand held. Hole sizes run from Ø40 to Ø300 mm in reinforced concrete, masonry, stone and asphalt. The drive unit weighs 14.4 kg and drills dry or wet. REMS rates a Ø62 mm hole, 200 mm deep in reinforced concrete, at about 2 minutes.

Before ordering, check the largest hole size, the wall or floor material and whether water can be used on site. These three points decide between a drive unit, a Basic-Pack or a set with a stand.

REMS Picus S2-3,5 core drill Set Titan

Item 180030 R220 includes:

  • Picus S2-3,5 Basic-Pack (drive unit, light loosening ring, wrench)
  • REMS Titan drill stand for up to Ø300 mm, tiltable 0–45°, 19.5 kg
  • Fastening kit for masonry and concrete
  • Crowns not included

Picus S2-3,5 features

  • 3420 W universal motor, 2-speed gear 320 and 760 rpm.
  • Stand-only machine; clamping plate for fast mounting on the REMS Titan stand.
  • Ø40–300 mm in reinforced concrete, masonry, natural stone, asphalt and screed.
  • Safety slip clutch against blocking.
  • Multifunction electronics: soft start, idle speed limiting, overload and blocking protection.
  • Rocker switch, connecting cable with personal protection switch (PRCD).
  • Light loosening ring for easy removal of the crown.
  • Water supply with adjustable shut-off valve and quick coupling with water stop, ½" hose connection.

Crowns and drill stands

The machine takes REMS UDKB and UDKB LS universal core crowns, 420 mm drilling depth. The UNC 1¼ thread is the REMS standard, so one set of crowns fits every Picus. Stand-only machine, use the REMS Titan stand.

Which Picus S2-3,5 version to choose

Dust when drilling dry

Drilling concrete, masonry and stone releases fine quartz dust that is harmful to inhale. EN 60335-2-69 requires at least a class M safety extractor. REMS Pull 2 M meets this class and connects directly to the Picus suction port.


Specifications

  • Motor power: 3420 W
  • Voltage: 230 V, 50–60 Hz
  • Gear: 2-speed, maintenance-free
  • Load speed: 320, 760 rpm
  • Drilling diameter: Ø40–300 mm, all materials
  • Crown connection: UNC 1¼ male
  • Drilling mode: dry or wet, drill stand only
  • Protection: PRCD, safety slip clutch, overload and blocking protection
  • Drive unit weight: 14.4 kg
  • Compatible crowns: REMS UDKB and UDKB LS, drilling depth 420 mm
  • Scope of supply: Picus S2-3,5 Basic-Pack (drive unit, light loosening ring, wrench); REMS Titan drill stand for up to Ø300 mm, tiltable 0–45°, 19.5 kg; Fastening kit for masonry and concrete; Crowns not included
Tags / Keywords: REMS Picus S2-3 , 5 core drill
Optional Accessories
SKU Image Price VNĐ Product name & short description
180012 R220 REMS Picus S2-3,5 diamond core drill Basic-Pack 180012 R220
€4,029.35
REMS Picus S2-3,5 diamond core drill Basic-Pack 180012 R220
The REMS Picus S2-3,5 Basic-Pack is the basic kit of the largest Picus machine. 3420 W, the most powerful Picus, 320 and 760 rpm, Ø40–300 mm holes on a drill stand, dry or wet. Takes REMS diamond core crowns with UNC 1¼ thread.
