Drilling stand

REMS Simplex 2 diamond core drill stand Ø202 mm 183700 R

★ 0.0 (0 reviews)
Sold: 0
Views: 0
Imported from: Germany
Origin: Made in Germany

REMS Simplex 2 compact core drill stand for up to Ø202 mm, 50 mm square steel column, steel base with 4 levelling screws, 12 kg. Fits Picus S1, S3, SR, DP, DWP and other makes with a Ø60 mm throat, supplied with tools and fastening kit.

SKU: 183700 R
€1,285.94
Stock status: Out of stock
Indicative price
Description

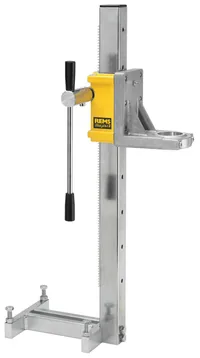

The REMS Simplex 2 drill stand 183700 R is a compact stand for diamond core drills up to Ø202 mm. The 50 mm square precision steel column gives smooth, low-vibration slide travel. The column sits in a steel section base, double bolted for rigidity when drilling reinforced concrete. Four set screws level the stand on uneven floors. Simplex 2 takes the Picus S1, S3, SR, DP, DWP and other makes with a Ø60 mm throat. At only 12 kg one person can carry it up the stairs. It comes with tools and a fastening kit for masonry and concrete. For holes above Ø202 mm or angled drilling, choose the REMS Titan stand.

Before ordering, check the largest hole size and which drill will go on the stand. Machines of other makes need a Ø60 mm clamping throat to fit the stand bracket.

REMS Simplex 2 compact core drill stand Ø202 mm

Item 183700 R includes:

  • REMS Simplex 2 drill stand
  • Allen key size 6, open-ended wrenches size 19 and 30
  • Anchors: 2 M12 splaying anchors for masonry, 10 M12 hammer anchors for concrete, setting iron
  • Threaded bar M12 × 52, quick clamping nut, washer
  • Ø15 mm SDS-plus masonry drill for the anchor holes
  • Box

Stand features

  • Drilling up to Ø202 mm.
  • 50 mm square cold-hardened precision steel column for low-vibration slide guidance.
  • Column set in a steel section base and double bolted for rigidity.
  • 4 set screws for levelling uneven floors.
  • Adjustable plastic slide bearings, integrated spirit level, slide lock for crown fitting and transport.
  • Rigid Ø60 mm throat clamping bracket.
  • Wide steel rack and pinion with lever usable on both sides of the slide.

Compatible Picus drive units

Optional accessories

  • Quick clamping set 500 without anchors 183607 R
  • Water pressure tank 10 l 182006 R
  • Water suction device 183606 R
  • Magnetic circular spirit level 182010 R

Specifications

  • Max. drilling diameter: Ø202 mm
  • Drill column: 50 mm square steel tube
  • Base: steel section with 4 levelling screws
  • Machine mounting: Ø60 mm throat bracket
  • Fixing: M12 anchors
  • Weight: 12 kg
  • Compatible machines: Picus S1, S3, SR, DP, DWP and other makes with Ø60 mm throat
Optional Accessories
SKU Image Price VNĐ Product name & short description
079005 R50 Hammer anchor M12, pack of 50 REMS 079005 R50
€139.60
Hammer anchor M12, pack of 50 REMS 079005 R50
Zubehör für REMS Bohrständer Simplex und Duplex
079006 R10 Splaying anchor M12, pk of 10 REMS 079006 R10
€131.05
Splaying anchor M12, pk of 10 REMS 079006 R10
Zubehör für REMS Bohrständer Simplex und Duplex
079010 Quick clamping set 160 REMS 079010
€92.31
Quick clamping set 160 REMS 079010
Zubehör für REMS Bohrständer Simplex und Duplex
079019 HM masonry bit Ø 20 SDS-plus REMS 079019
€80.47
HM masonry bit Ø 20 SDS-plus REMS 079019
Zubehör für REMS Bohrständer Simplex und Duplex
180145 R Drilling start aid G 1/2 TDKB REMS 180145 R
€116.58
Drilling start aid G 1/2 TDKB REMS 180145 R
Anbohrhilfe G 1/2 TDKB, mit Bohrungen zur Absaugung des Bohrstaubes aus dem Bohrloch, mit Hartmetall Steinbohrer Dm. 8mm für REMS Picus DP.
182010 R Magnetic Spirit Level REMS 182010 R
€95.37
Magnetic Spirit Level REMS 182010 R
Thước thủy tròn dạng nút từ tính REMS 182010 R hỗ trợ căn chỉnh giá đỡ khoan nhờ thiết kế nhỏ gọn và nam châm tích hợp. Thiết bị giúp kiểm tra nhanh độ cân bằng của giá đỡ khoan, phù hợp sử dụng trong các công việc lắp đặt và kiểm tra thiết bị khoan tại công…
182050 R Flattener for hammer anchor M12 REMS 182050 R
€20.46
Flattener for hammer anchor M12 REMS 182050 R
REMS Setzeisen für Einschlaganker M12
183600 R REMS Titan diamond core drill stand Ø300 mm 183600 R
€1,953.46
REMS Titan diamond core drill stand Ø300 mm 183600 R
REMS Titan heavy-duty core drill stand for up to Ø300 mm, 50 mm square steel column, tilting 0–45°, bracing between ceiling and floor. Fits every Picus and other makes with a Ø60 mm throat, 19.5 kg, with tools and fastening kit.
183603 R Vacuum fastening Titan REMS 183603 R
€126.13
Vacuum fastening Titan REMS 183603 R
Vakuumbefestigung Titan, bestehend aus Abdeck platte mit Nippel fur Schlauchanschluss 3/4"" und Dichtring fur Grundplatte.
183604 R Laser drilling centre pointer REMS 183604 R
€165.31
Laser drilling centre pointer REMS 183604 R
REMS Laser-Bohrmitteanzeiger
183605 R Drill template Titan REMS 183605 R
€73.06
Drill template Titan REMS 183605 R
Bohrschablone Titan zum einfachen Setzen der Befestigungsbohrungen. Für Bohrständer REMS Titan.
183632 R Distancing piece Set REMS 183632 R
€61.62
Distancing piece Set REMS 183632 R
Distanzstück Set zur zusätzlichen Stabilisierung der Antriebsmaschine REMS Picus SR am Bohrständer REMS Titan, bestehend aus Distanzstück und 2 Zylinder schrauben M 8 x 65
183670 R220 Vacuum pump REMS 183670 R220
€2,424.95
Vacuum pump REMS 183670 R220
Vakuumpumpe, für Vakuum kleiner - 900 mbar (90%), bestehend aus trockenlaufender Drehschieberpumpe, ölfrei, Förderleistung 6 qm/h, Kondensatormotor 230 V, 50 - 60 Hz, 250 W, spritzwassergeschützt, innenliegender Ansaugfi lter mit Schalldämpferfunktion und 5 m…
185501 R220 Pull M Set REMS 185501 R220
€1,359.47
Pull M Set REMS 185501 R220
Elektrischer Trocken- und Nasssauger für gewerbliche Verwendung. Zum Saugen von Stäuben, Schmutz und Flüssigkeiten. Ideal zum Entstauben beim Schlitzen, Trennen, Bohren, Kernbohren und Schleifen. Zertifiziert als Sauger und Entstauber zur Aufnahme gesundheits…
185503 R220 Pull L Set W REMS 185503 R220
€1,620.25
Pull L Set W REMS 185503 R220
Elektrischer Trocken- und Nasssauger für gewerbliche Verwendung. Zum Saugen von Stäuben, Schmutz und Flüssigkeiten. Ideal zum Entstauben beim Schlitzen, Trennen, Bohren, Kernbohren und Schleifen. Zertifiziert als Sauger und Entstauber zur Aufnahme gesundheits…
185504 R220 Pull M Set D REMS 185504 R220
€1,579.90
Pull M Set D REMS 185504 R220
Elektrischer Trocken- und Nasssauger für gewerbliche Verwendung. Zum Saugen von Stäuben, Schmutz und Flüssigkeiten. Ideal zum Entstauben beim Schlitzen, Trennen, Bohren, Kernbohren und Schleifen. Zertifiziert als Sauger und Entstauber zur Aufnahme gesundheits…
