Drilling stand

REMS Titan diamond core drill stand Ø300 mm 183600 R

★ 0.0 (0 reviews)
Sold: 0
Views: 0
Imported from: Germany
Origin: Made in Germany

REMS Titan heavy-duty core drill stand for up to Ø300 mm, 50 mm square steel column, tilting 0–45°, bracing between ceiling and floor. Fits every Picus and other makes with a Ø60 mm throat, 19.5 kg, with tools and fastening kit.

SKU: 183600 R
€1,953.46
Stock status: Out of stock
Indicative price
Description

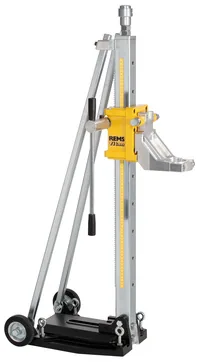

The REMS Titan drill stand 183600 R is a heavy-duty stand for diamond core drills up to Ø300 mm. The 50 mm square precision steel column gives smooth, low-vibration slide travel. It tilts steplessly from 0 to 45° with a degree scale, supported by two steel girders. An adjustable clamping head braces the stand between ceiling and floor or two walls. The base plate has a sealing groove for the optional vacuum fastening 183603 R. Titan takes every Picus S1, S3, SR, S2-3,5, DP and DWP, plus other makes with a Ø60 mm throat. With the Picus SR, add spacer set 183632 R for a firmer hold. The stand weighs 19.5 kg and comes with tools and a fastening kit for masonry and concrete.

Before ordering, check the largest hole size and which drill will go on the stand. Machines of other makes need a Ø60 mm clamping throat to fit the stand bracket.

REMS Titan heavy-duty core drill stand Ø300 mm

Item 183600 R includes:

  • REMS Titan drill stand
  • Allen key size 6, open-ended wrenches size 19 and 30
  • Anchors: 2 M12 splaying anchors for masonry, 10 M12 hammer anchors for concrete, setting iron
  • Threaded bar M12 × 52, quick clamping nut, washer
  • Ø15 mm SDS-plus masonry drill for the anchor holes
  • Box

Stand features

  • Drilling up to Ø300 mm in reinforced concrete and other materials.
  • 50 mm square cold-hardened precision steel column for low-vibration slide guidance.
  • Stepless tilting 0–45° with degree scale, double support by steel girders.
  • 3-sided column guidance in the base plate and triple cross fastening for rigid vertical drilling.
  • 4 eyebolts for levelling uneven floors, drill depth scale.
  • Adjustable plastic slide bearings, integrated spirit level, slide lock for crown fitting and transport.
  • Wear-resistant spheroidal iron connection plate, quick-clamping device and Ø60 mm throat bracket.
  • Wide steel rack and pinion with lever usable on both sides of the slide.
  • Base plate groove for the optional vacuum fastening 183603 R.
  • Adjustable clamping head for bracing between ceiling and floor or two walls.

Compatible Picus drive units

Optional accessories

  • Spacer set for Picus SR 183632 R
  • Titan vacuum fastening 183603 R
  • Titan drilling template 183605 R
  • Quick clamping set 500 without anchors 183607 R
  • Vacuum pump 183670 R220
  • Water suction device 183606 R

Specifications

  • Max. drilling diameter: Ø300 mm
  • Drill column: 50 mm square steel tube
  • Tilt: 0–45°, stepless, with degree scale
  • Machine mounting: quick-clamping plate and Ø60 mm throat bracket
  • Levelling: 4 eyebolts
  • Fixing: M12 anchors, vacuum fastening (accessory) or ceiling bracing
  • Weight: 19.5 kg
  • Compatible machines: Picus S1, S3, SR, S2-3,5, DP, DWP and other makes with Ø60 mm throat
