Toggle clamps

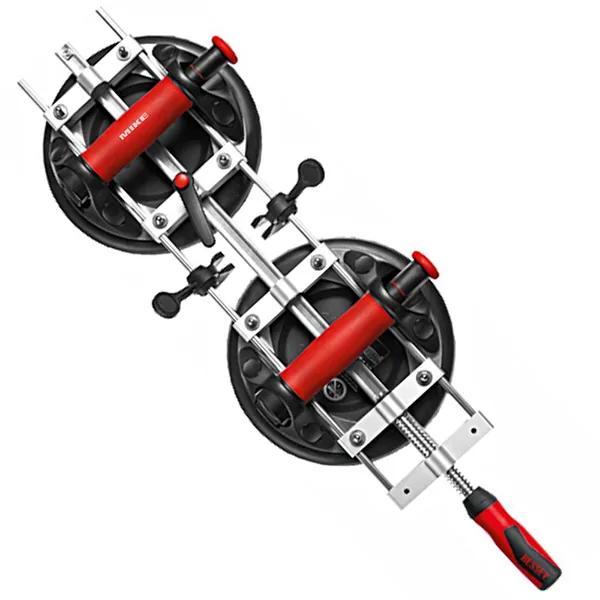

Seaming tool, big and strong

★ 0.0 (0 reviews)
Sold: 0
Views: 0
Imported from: Germany

For clamping and positioning large and potentially heavy components with a smooth surface, such as artificial stone, ceramic, granite, Corian®, plastic, sheet metal and glass Manual vacuum pumps for maximum suction power, and ther

SKU: PS130
€1,005.40
Stock status: Out of stock
Indicative price
Description

Product details

  • For clamping and positioning large and potentially heavy components with a smooth surface, such as artificial stone, ceramic, granite, Corian®, plastic, sheet metal and glass
  • Manual vacuum pumps for maximum suction power, and therefore a maximum level of horizontal clamping force up to 1,200 N
  • Marking ring on the pump lever to permanently check for a reliable vacuum
  • Practical quick adjustment function for rapid adjustment of the distance between the two suction cups

Product description

Vacuum pumps with control function

The required vacuum is generated with only a few movements of the pump – for a maximum vacuum and top clamping force up to 1,200 N. The status of the vacuum can be checked at any time via a marking ring on the pump tappet and brought back up to the maximum by repeated pumping.

Release button

By simply pressing the release button, the vacuum disappears and the seaming tool can be removed quickly.

Quick adjusting screw

To quickly adjust the distance, simply undo the screws and slide the suction cups into the desired position via the guide rails.

Sturdy construction

The proven BESSEY all-steel rails, which run in anodised aluminium profiles, keep the suction discs on precisely the same level, even under high clamping pressures. This guarantees a precise finished result.

Areas of application

Furniture and joinery works

Kitchen construction and shop fitting

  • Interior fittings

Safety information

Read and follow the instruction manual.

Material / Surface

Base body aluminium, anodised

Rail made of galvanised steel

  • Spindle with trapezoidal thread in rolled steel, galvanised
  • Handle made of 2-component plastic
  • Remaining parts made of plastic

Care instructions

Clean the rails with solvent.

Clean and oil the spindle regularly.

  • Clean rubber plates with clear water if necessary (keep free of dust).
SpecificationValue
Openingmm5–130
Lengthmm715
Widthmm215
Weightkg4.08

Specifications

  • Lực kẹp ngang tối đa: 1.200 N
  • Độ mở (khoảng cách giữa hai cốc hút): 5–130 mm
  • Chiều dài tổng thể: 715 mm
  • Chiều rộng tổng thể: 215 mm
  • Trọng lượng: 4,08 kg
  • Thân: nhôm anod hóa
  • Ray: thép mạ kẽm
  • Trục vít: thép ren hình thang, mạ kẽm
  • Tay cầm: nhựa hai thành phần
  • Cốc hút: cao su
  • Hệ thống tạo chân không: bơm thủ công
  • Chức năng kiểm tra chân không: vòng đánh dấu trên tay bơm
  • Chức năng điều chỉnh nhanh: có
  • Nút nhả nhanh: có
  • Ứng dụng: kẹp đá nhân tạo, gốm, granite, Corian, nhựa, kim loại tấm, kính
