Telescopic pole pruner FELCO 290 rotating head

The telescopic pole pruner reaches branches up to 2.67 m overhead without ladders. The aluminium pole retracts to 1.68 m for transport and storage. A rotating head pivots from 110° to 60°, allowing operators to align the blade with branch angles. The HRC 54 carbon steel blade features a non-stick coating to reduce sap adhesion. Dyneema cord runs through a pulley system to transfer cutting force from the sliding handle to the head. The bypass cutting mechanism delivers clean cuts on live wood up to 35 mm diameter.

Telescopic pole pruner construction and reach

Aluminium pole and extension range

The aluminium pole balances rigidity with low weight. It extends from 1.68 m to 2.67 m in a single telescopic section. The retracted length simplifies vehicle transport and workshop storage. Aluminium resists corrosion in humid orchard environments. The pole diameter and wall thickness provide torsional stability when the head is fully extended.

• Retracted length: 1.68 m
• Extended length: 2.67 m
• Pole material: aluminium
• Weight: 1.27 kg
• Product depth: 63 mm

The extension mechanism locks securely at the desired length. Operators adjust reach to match tree height and branch position. The lightweight construction reduces arm fatigue during prolonged pruning sessions.

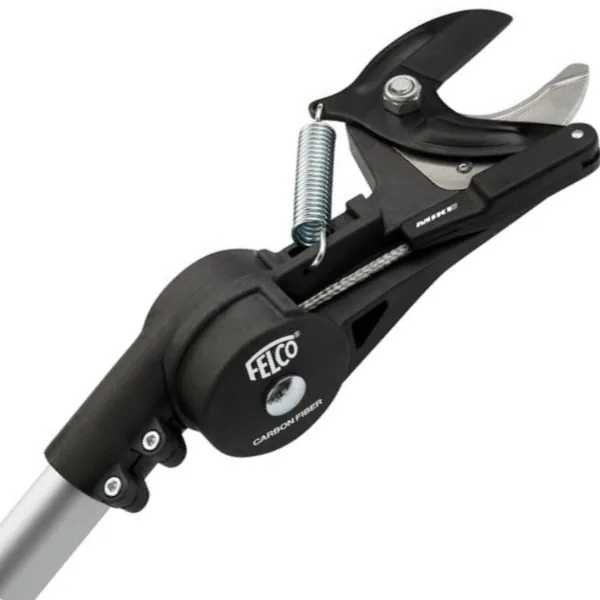

Rotating cutting head and angle adjustment

The cutting head rotates to adjust blade angle from 110° to 60° relative to the pole axis. This range covers horizontal, upward, and downward branch orientations. Operators rotate the head by hand before locking it in position. The rotation mechanism maintains alignment under cutting load. Angle adjustment eliminates the need to reposition the entire pole for each cut.

• Head rotation range: 110° to 60°
• Adjustment method: manual rotation with lock
• Cutting capacity: 35 mm diameter
• Blade length: 45 mm

The rotating head improves access to branches growing at oblique angles. It reduces wrist strain by aligning the blade with the branch rather than forcing the operator to twist the pole.

Blade and cutting system

HRC 54 carbon steel blade with non-stick coating

The blade is forged from carbon steel hardened to HRC 54 for edge retention. A non-stick coating reduces friction and sap buildup during cuts. The bypass design positions a sharp upper blade against a fixed lower hook. This configuration produces a shearing action that leaves smooth cut surfaces. The 45 mm blade length accommodates branches up to 35 mm diameter.

• Blade material: carbon steel HRC 54
• Blade coating: non-stick
• Blade length: 45 mm
• Cutting type: bypass
• Maximum cutting diameter: 35 mm

The bypass mechanism requires less force than anvil designs on green wood. The non-stick coating minimizes cleaning between cuts. Blade geometry promotes rapid healing of pruned branches.

Dyneema cord and pulley transmission

A Dyneema cord connects the sliding handle to the cutting head through a series of pulleys. Dyneema offers high tensile strength and low stretch compared to conventional rope. The pulley system multiplies handle travel to achieve full blade closure. The cord runs inside the pole to protect it from abrasion and UV exposure.

• Cord material: Dyneema
• Transmission: pulley system
• Handle type: ergonomic with Softgrip

The low-friction pulley system requires minimal force to close the blade. Dyneema resists moisture absorption and maintains consistent performance across temperature ranges. The sliding handle design allows operators to use both hands for leverage.

Common applications

Fruit growers use the telescopic pole pruner to thin canopy branches on citrus, stone fruit, and pome fruit trees. The rotating head accesses branches shaded by upper growth. Landscape professionals prune ornamental trees and shrubs in parks and streetscapes. The extended reach eliminates the need for ladders on trees up to 4 m tall. Arborists remove deadwood and water sprouts from mature specimens. The bypass cut promotes callus formation and reduces disease entry points.

Technical specifications summary

• Cutting capacity: 35 mm diameter
• Pole length retracted: 1.68 m
• Pole length extended: 2.67 m
• Weight: 1.27 kg
• Blade material: carbon steel HRC 54 with non-stick coating
• Blade length: 45 mm
• Cutting head: rotating, 110° to 60° angle range
• Pole material: aluminium
• Cord material: Dyneema
• Handle: ergonomic with Softgrip
• Cutting type: bypass
• Product depth: 63 mm
• Gross weight with packaging: 2.06 kg
