Parallel clamp K-body

UniKlamp UK

★ 0.0 (0 reviews)
Sold: 0
Views: 0
Imported from: Germany

Clamping force up to 1,500 N Parallel jaw faces with extra-large contact surfaces Clamping of various shapes, along the whole length of the rail Universally applicable Light and easy-to-handle No need for tools for switching betwe

SKU: UK100
€48.71
Stock status: Out of stock
Indicative price
Description

Product details

  • Clamping force up to 1,500 N
  • Parallel jaw faces with extra-large contact surfaces
  • Clamping of various shapes, along the whole length of the rail
  • Universally applicable
  • Light and easy-to-handle
  • No need for tools for switching between clamping and spreading

Product description

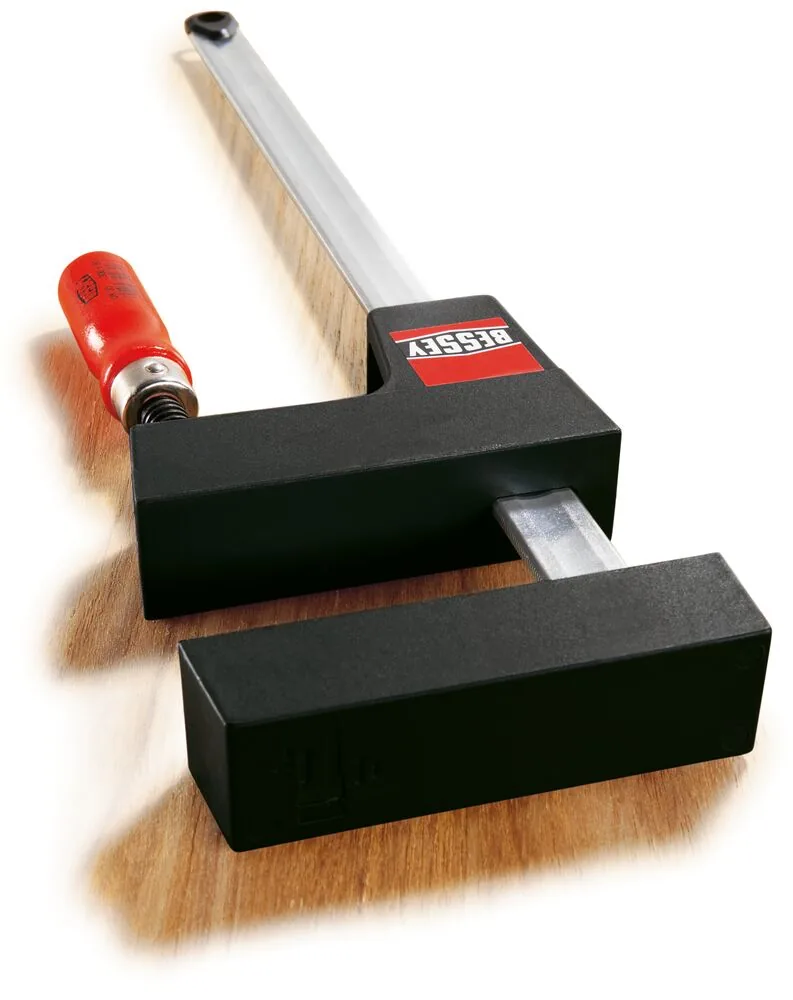

Parallel jaw faces

The large, flat jaw faces made from impact‐ and fracture‐resistant reinforced polyamide are almost parallel. For gentle clamping of a very wide range of ­different shapes over the entire length of the rail, without spacers.

High‐quality profiled rail

The BESSEY hollow profile rail from our own drawing plant has been especially optimised for clamps. The profile acts as a reliable reinforcement against torsional forces, while the serration prevents the clamp from slipping.

Removable end stop

The end stop made from impact-resistant polyamide also gives the clamp added support. It can be removed without any tools, to allow the lower arm to be quickly turned around and used for spreading.

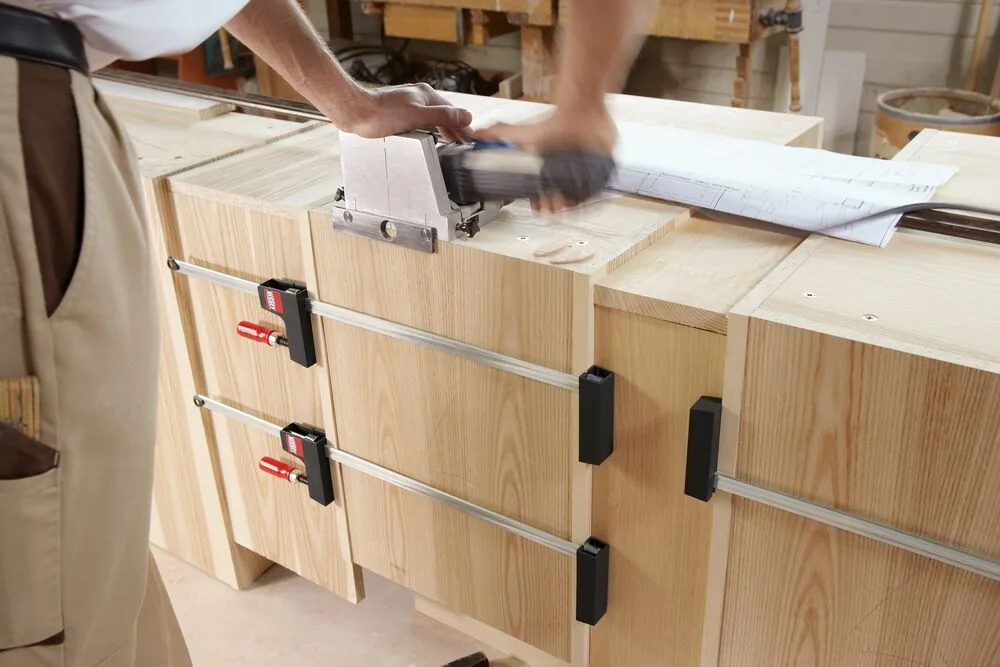

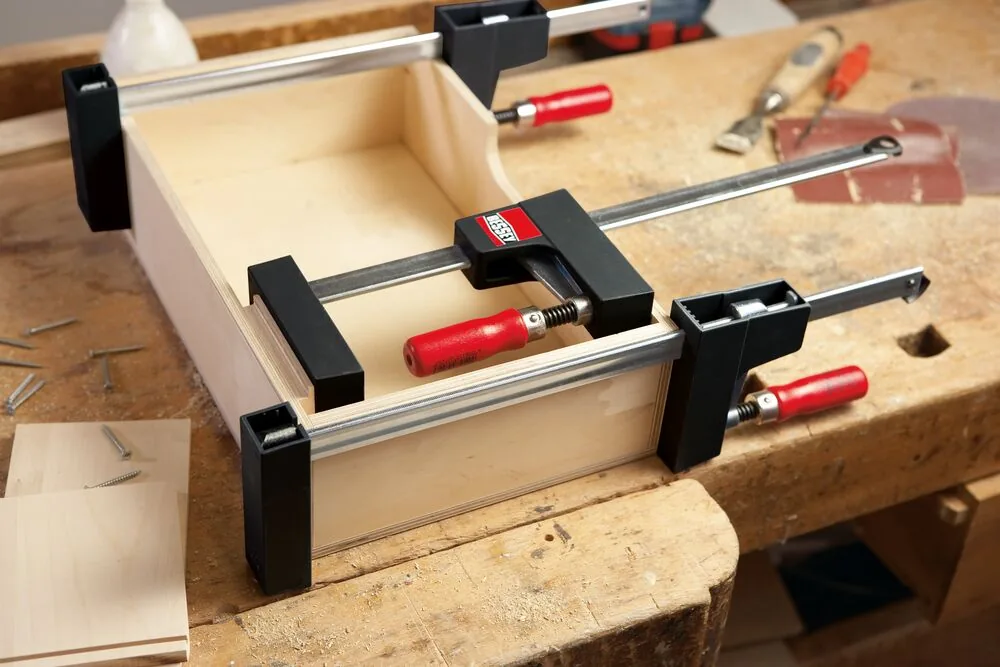

Areas of application

Furniture and joinery works

Interior fittings

  • DIY
  • Large-area clamping and spreading

Safety information

Use the product only in its original condition.

Use the product only for its intended purpose. Improper use can cause personal injury or property damage.

  • Wear safety glasses to protect your eyes.
  • Wear work or assembly gloves to protect your hands.
  • Wear safety footwear to protect your feet.
  • Thew handle must always be free of oil and grease to prevent slipping.
  • Keep the product out of reach of children.
  • Small parts must not be swallowed or inserted into body openings.
  • Check the product for damage before each use and make sure that all moving parts are working properly.
  • A damaged product must not be used.
  • Follow the care instructions for each product – see vinatools.com.
  • Use only original BESSEY spare parts
  • The clamping tool must not be used for lifting, pulling or leaning.
  • The clamping tool must not be used to secure cargo during transportation.
  • The clamping tool may only be tightened by hand without any additional aids.
  • The clamping tool must not be used for permanent installation.
  • Regularly check that the end stop is working properly when using clamps.

Material / Surface

Upper and lower section made of reinforced PA6 plastic with inserted sheet metal parts for reinforcement

Hollow profile rail made of steel, cold-drawn, galvanised

  • Spindle with trapezoidal thread in rolled steel, burnished
  • Handle made of wood, water-based paint
  • Pressure plate made of steel, cold pressed, galvanised

Care instructions

Regular maintenance is necessary – only then can a secure hold be guaranteed (no slipping of the sliding bracket).

Clean the rails with solvent.

  • Always keep the rail free of grease, oil or dried glue, waxes and silicone-based release agents.
  • Clean the fluting on the rails with a steel brush.
  • Clean and oil the spindle regularly.

Accessories / Suitable for

  • Edge clamp KT5 | Practical accessory for clamping edges and difficult to reach areas - Suitable for conventional screw clamps with a max. rail thickness of 13 mm | https://vinatools.com/static/bessey-mirror/pages/edge-clamp-kt5-7779b5d166.html

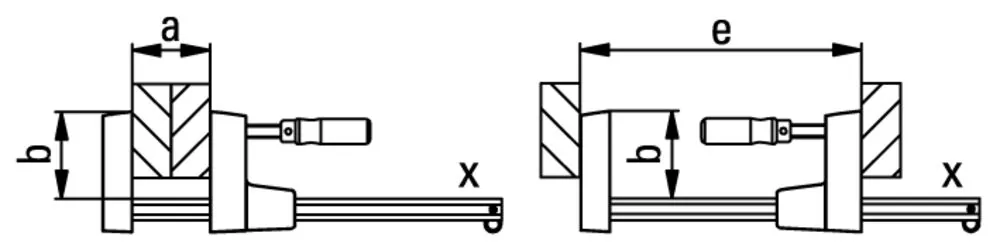

SpecificationValue
Openingmm1000
Throat depthmm80
Spreading widthmm172–1120
Railmm20x5
Weightkg1.25

Specifications

  • Khẩu độ mở: 1000mm
  • Độ sâu cổ họng: 80mm
  • Chiều rộng đẩy: 172–1120mm
  • Lực kẹp: 1500N
  • Kích thước ray: 20×5mm
  • Trọng lượng: 1.25kg
  • Vật liệu phần trên/dưới: polyamide PA6 gia cường, chèn tấm kim loại
  • Vật liệu ray: thép kéo nguội, mạ kẽm
  • Vật liệu trục ren: thép cán, tôi bóng, ren hình thang
  • Vật liệu tay vặn: gỗ sơn gốc nước
  • Vật liệu tấm đẩy: thép dập nguội, mạ kẽm
  • Vật liệu chốt cuối: polyamide chịu va đập
  • Mặt kẹp: song song, diện tiếp xúc lớn
  • Chuyển đổi kẹp/đẩy: không cần dụng cụ
