Diamond core drilling machine

REMS Picus S1 diamond core drill, drive unit 180000 R220

★ 0.0 (0 reviews)
Sold: 0
Views: 0
Imported from: Germany
Origin: Made in Germany

The REMS Picus S1 core drill 180000 R220 is the bare drive unit of the S1 line, sold without a steel case. 1850 W, 580 rpm, reinforced concrete up to Ø102 mm, Ø132 mm on a stand, masonry up to Ø162 mm, 5.2 kg. Takes REMS diamond core crowns with UNC 1¼ thread.

SKU: 180000 R220
€1,886.06
Stock status: Out of stock
Indicative price
Description

The REMS Picus S1 core drill 180000 R220 is the bare drive unit of the S1 line, sold without a steel case. It suits users who already own a stand and crowns and need an extra or replacement motor. Typical jobs are holes for water pipes, ventilation ducts and cable trays through walls and floors. The Picus S1 line uses a 1850 W motor with a load speed of 580 rpm. It drills steel-reinforced concrete up to Ø102 mm hand held and up to Ø132 mm on a drill stand. In masonry and other materials it reaches Ø162 mm. The drive unit weighs only 5.2 kg and works dry or wet. REMS rates a Ø62 mm hole, 200 mm deep in reinforced concrete, at about 3 minutes.

Before ordering, check the largest hole size, the wall or floor material and whether water can be used on site. These three points decide between a drive unit, a Basic-Pack or a set with a stand.

REMS Picus S1 core drill 1850 W, drive unit

Item 180000 R220 includes:

  • Picus S1 drive unit 1850 W
  • Water supply with valve and ½" quick coupling

Picus S1 features

  • 1850 W universal motor, load speed 580 rpm.

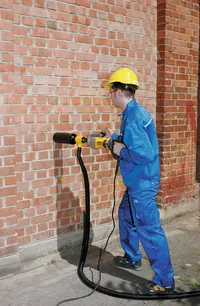

  • Dry or wet drilling, hand held or on a drill stand.
  • Compact body for drilling flush with walls and in narrow corners.
  • Maintenance-free gear with a safety slip clutch against blocking.
  • Multifunction electronics: soft start, idle speed limiting, overload and blocking protection.
  • Connecting cable with integrated personal protection switch (PRCD).
  • Water supply with adjustable shut-off valve and quick coupling with water stop, ½" hose connection.

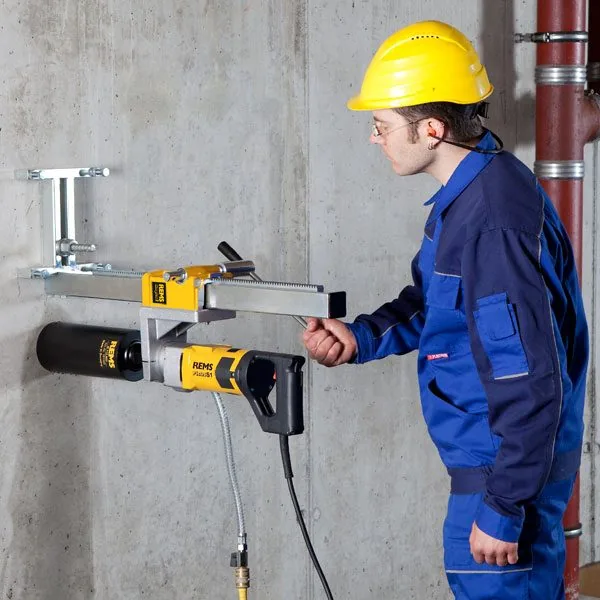

  • Ø60 mm clamping throat for the REMS Simplex 2 or REMS Titan drill stand.

Crowns and drill stands

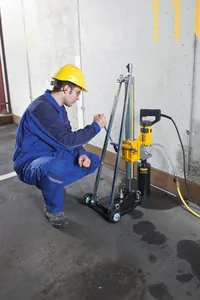

The machine takes REMS UDKB and UDKB LS universal core crowns, 420 mm drilling depth. The UNC 1¼ thread is the REMS standard, so one set of crowns fits every Picus. Compatible stands: REMS Simplex 2 stand (up to Ø202 mm) or REMS Titan stand (up to Ø300 mm, tilting 45°).

Which Picus S1 version to choose

Dust when drilling dry

Drilling concrete, masonry and stone releases fine quartz dust that is harmful to inhale. EN 60335-2-69 requires at least a class M safety extractor. REMS Pull 2 M meets this class and connects directly to the Picus suction port.


Specifications

  • Motor power: 1850 W
  • Voltage: 230 V, 50–60 Hz
  • Load speed: 580 rpm
  • Concrete, steel-reinforced concrete: up to Ø102 mm, Ø132 mm on a drill stand
  • Masonry and other materials: up to Ø162 mm
  • Crown connection: UNC 1¼ male, G ½ female
  • Clamping throat: Ø60 mm
  • Drilling mode: dry or wet, hand held or on a stand
  • Protection: PRCD, safety slip clutch, overload and blocking protection
  • Drive unit weight: 5.2 kg
  • Compatible crowns: REMS UDKB and UDKB LS, drilling depth 420 mm
  • Scope of supply: Picus S1 drive unit 1850 W; Water supply with valve and ½" quick coupling
