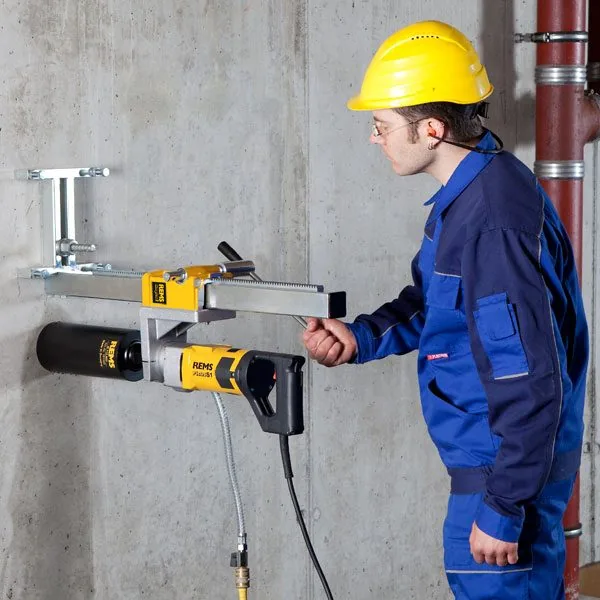

The REMS Picus S1 Set Simplex 2 180032 R220 combines the S1 Basic-Pack with the Simplex 2 drill stand. 1850 W, 580 rpm, reinforced concrete up to Ø102 mm, Ø132 mm on a stand, masonry up to Ø162 mm, 5.2 kg. Takes REMS diamond core crowns with UNC 1¼ thread.
The REMS Picus S1 Set Simplex 2 180032 R220 combines the S1 Basic-Pack with the Simplex 2 drill stand. No crowns are included, so the user picks sizes to suit the job. It suits owners of UDKB crowns who now need larger, straighter holes on a stand. The Picus S1 line uses a 1850 W motor with a load speed of 580 rpm. It drills steel-reinforced concrete up to Ø102 mm hand held and up to Ø132 mm on a drill stand. In masonry and other materials it reaches Ø162 mm. The drive unit weighs only 5.2 kg and works dry or wet. REMS rates a Ø62 mm hole, 200 mm deep in reinforced concrete, at about 3 minutes.
Before ordering, check the largest hole size, the wall or floor material and whether water can be used on site. These three points decide between a drive unit, a Basic-Pack or a set with a stand.
Item 180032 R220 includes:
The machine takes REMS UDKB and UDKB LS universal core crowns, 420 mm drilling depth. The UNC 1¼ thread is the REMS standard, so one set of crowns fits every Picus. Compatible stands: REMS Simplex 2 stand (up to Ø202 mm) or REMS Titan stand (up to Ø300 mm, tilting 45°).
Drilling concrete, masonry and stone releases fine quartz dust that is harmful to inhale. EN 60335-2-69 requires at least a class M safety extractor. REMS Pull 2 M meets this class and connects directly to the Picus suction port.
| SKU | Image | Price VNĐ | Product name & short description | |
|---|---|---|---|---|
| 180000 R220 |
![]() |
€1,886.06
|
REMS Picus S1 diamond core drill, drive unit 180000 R220
The REMS Picus S1 core drill 180000 R220 is the bare drive unit of the S1 line, sold without a steel case. 1850 W, 580 rpm, reinforced concrete up to Ø102 mm, Ø132 mm on a stand, masonry up to Ø162 mm, 5.2 kg. Takes REMS diamond core crowns with UNC 1¼ thread.
|
|
| 180010 R220 |
![]() |
€2,069.80
|
REMS Picus S1 diamond core drill Basic-Pack 180010 R220
The REMS Picus S1 Basic-Pack 180010 R220 is the starter kit of the S1 line. 1850 W, 580 rpm, reinforced concrete up to Ø102 mm, Ø132 mm on a stand, masonry up to Ø162 mm, 5.2 kg. Takes REMS diamond core crowns with UNC 1¼ thread.
|
|
| 180020 R220 |
![]() |
€2,264.46
|
REMS Picus S1 diamond core drill Set 62 180020 R220
The REMS Picus S1 Set 62 180020 R220 combines the S1 Basic-Pack with a UDKB Ø62 mm crown. 1850 W, 580 rpm, reinforced concrete up to Ø102 mm, Ø132 mm on a stand, masonry up to Ø162 mm, 5.2 kg. Takes REMS diamond core crowns with UNC 1¼ thread.
|
|
| 180031 R220 |
![]() |
€3,550.48
|
REMS Picus S1 diamond core drill Set UDKB 62 Simplex 2 180031 R220
The REMS Picus S1 Set UDKB 62 Simplex 2 180031 R220 is the most complete S1 set. 1850 W, 580 rpm, reinforced concrete up to Ø102 mm, Ø132 mm on a stand, masonry up to Ø162 mm, 5.2 kg. Takes REMS diamond core crowns with UNC 1¼ thread.
|
|
| 181050 R |
![]() |
€293.17
|
Diamond core bit Ø112 mm x 420 mm REMS 181050 R, UDKB
Induktiv gelötet, wiederbelegbar. Universell einsetzbar zum Trocken- und Nassbohren, handgeführt oder mit Bohrständer. Für viele Materialien, z. B. Beton, Stahlbeton, Mauerwerk aller Art, Naturstein, Asphalt, Estrich aller Art. Anschlussgewinde UNC 11/4 innen…
|
|
| 181103 R |
![]() |
€822.10
|
Diamond core bit set UDKB 62+102+125 REMS 181103 R
Induktiv gelötet, wiederbelegbar. Universell einsetzbar zum Trocken- und Nassbohren, handgeführt oder mit Bohrständer. Für viele Materialien, z. B. Beton, Stahlbeton, Mauerwerk aller Art, Naturstein, Asphalt, Estrich aller Art. Anschlussgewinde UNC 11/4 innen…
|
|
| 181113 R |
![]() |
€904.48
|
Diamond core bit set UDKB LS 62+102+125 REMS 181113 R
Lasergeschweißt, hochtemperaturbeständig. Universell einsetzbar zum Trocken- und Nassbohren, handgeführt oder mit Bohrständer. Für viele Materialien, z. B. Beton, Stahlbeton, Mauerwerk aller Art, Naturstein, Asphalt, Estrich aller Art. Anschlussgewinde UNC 11…
|
|
| 181435 R |
![]() |
€263.59
|
Diamond core bit Ø82 mm x 420 mm REMS 181435 R, UDKB LS laser-welded
Lasergeschweißt, hochtemperaturbeständig. Universell einsetzbar zum Trocken- und Nassbohren, handgeführt oder mit Bohrständer. Für viele Materialien, z. B. Beton, Stahlbeton, Mauerwerk aller Art, Naturstein, Asphalt, Estrich aller Art. Anschlussgewinde UNC 11…
|
