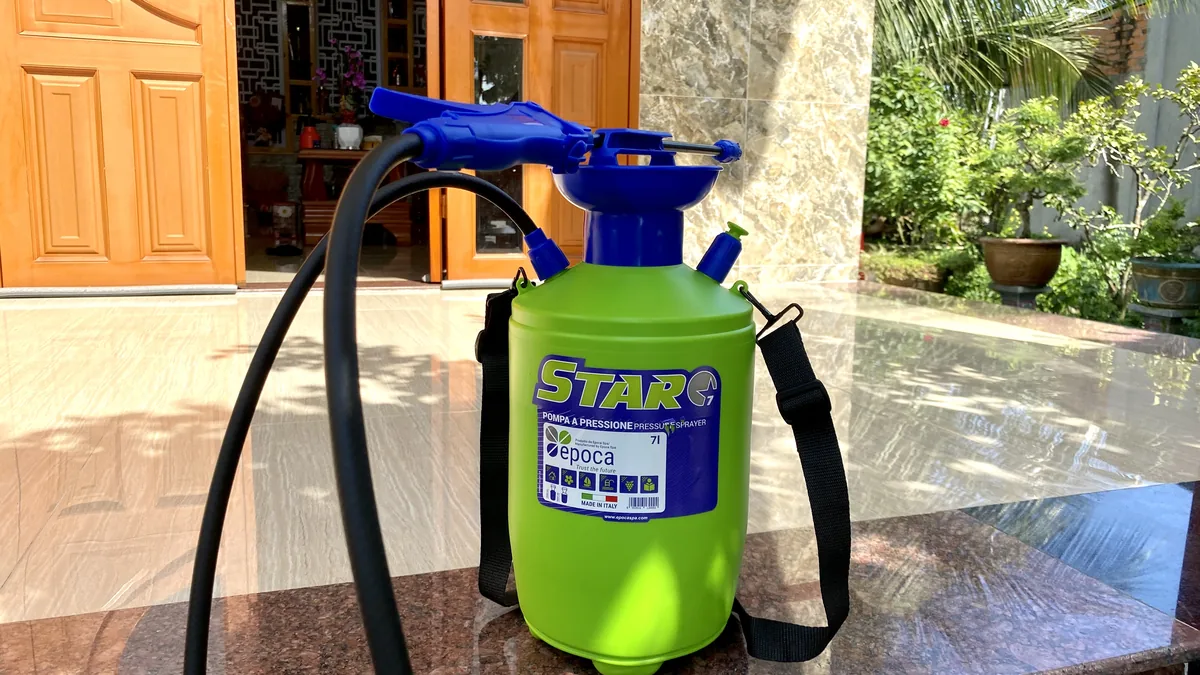

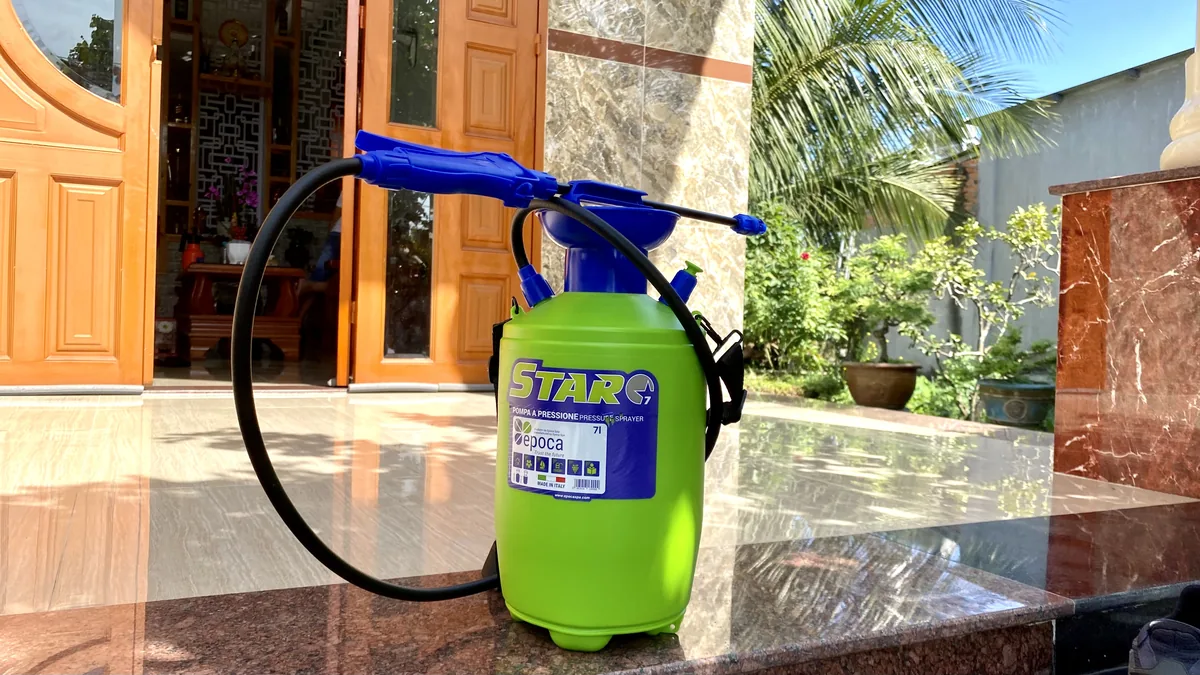

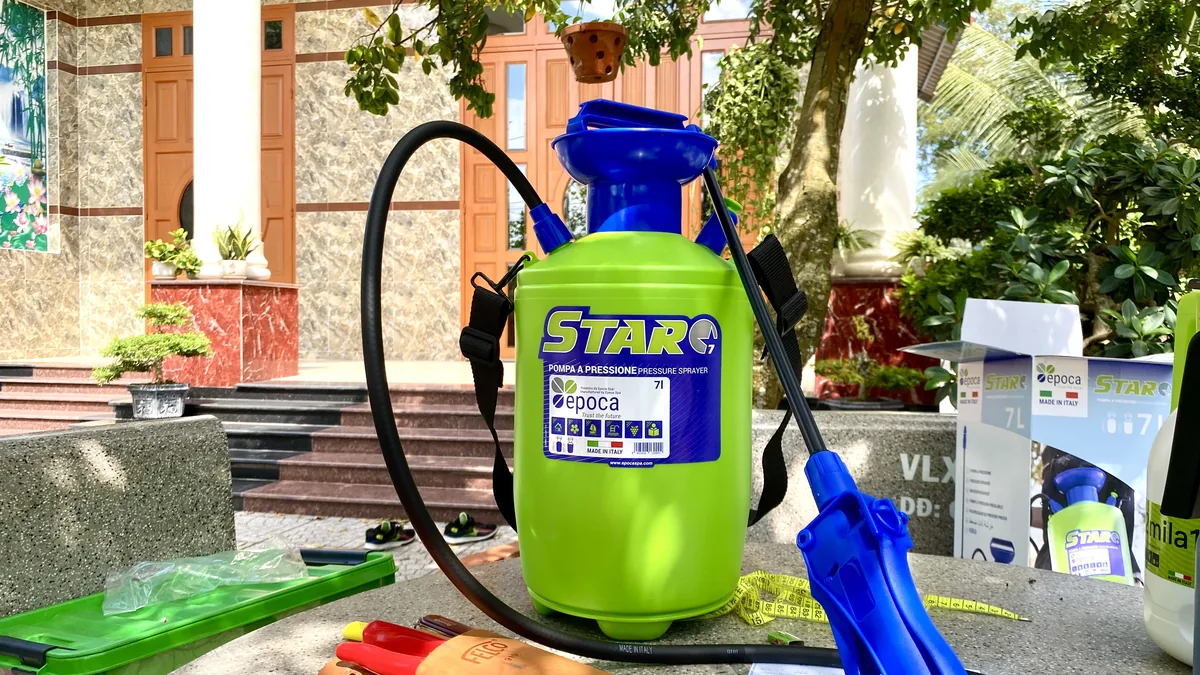

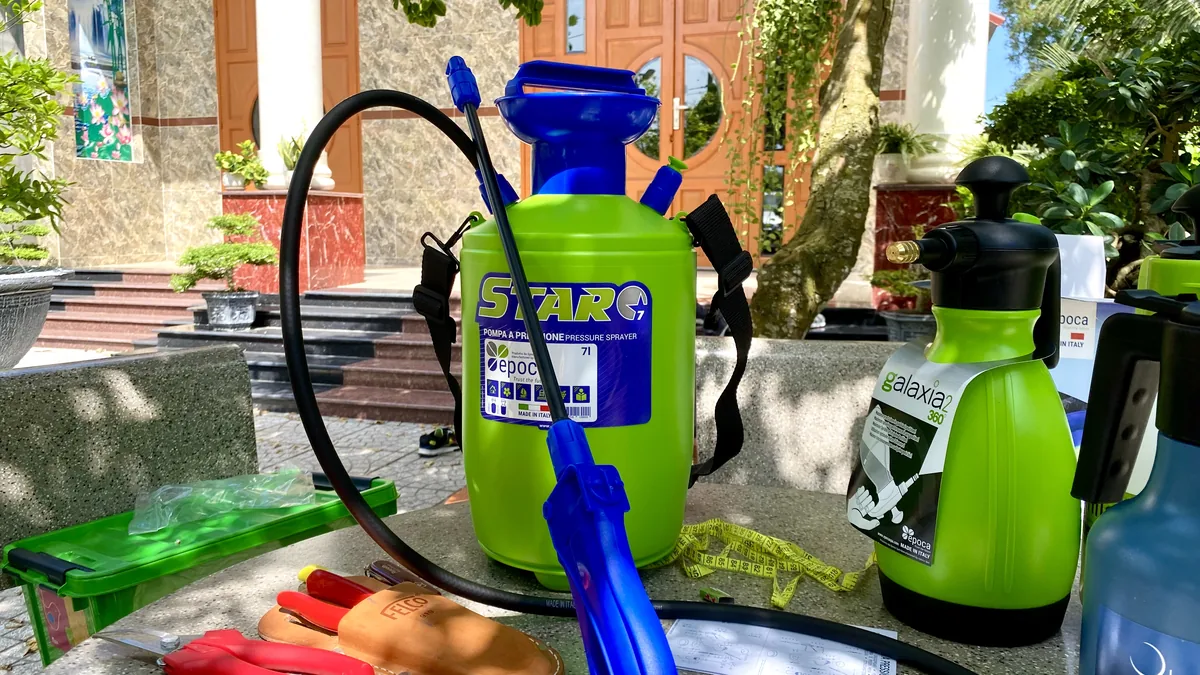

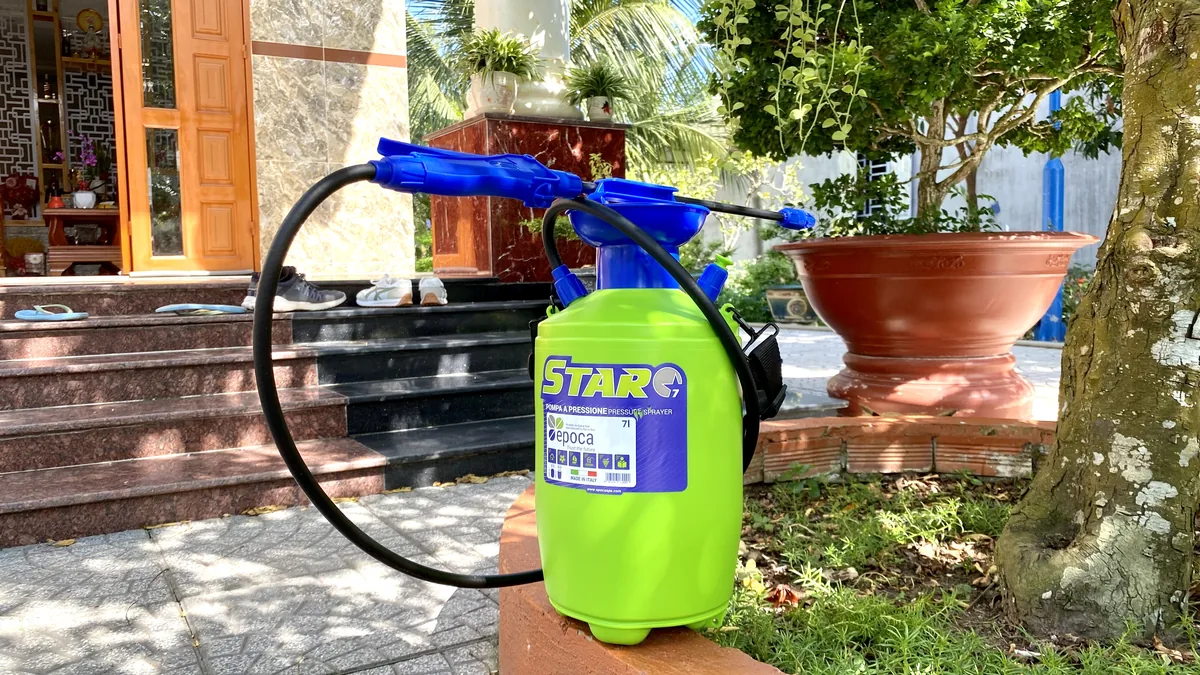

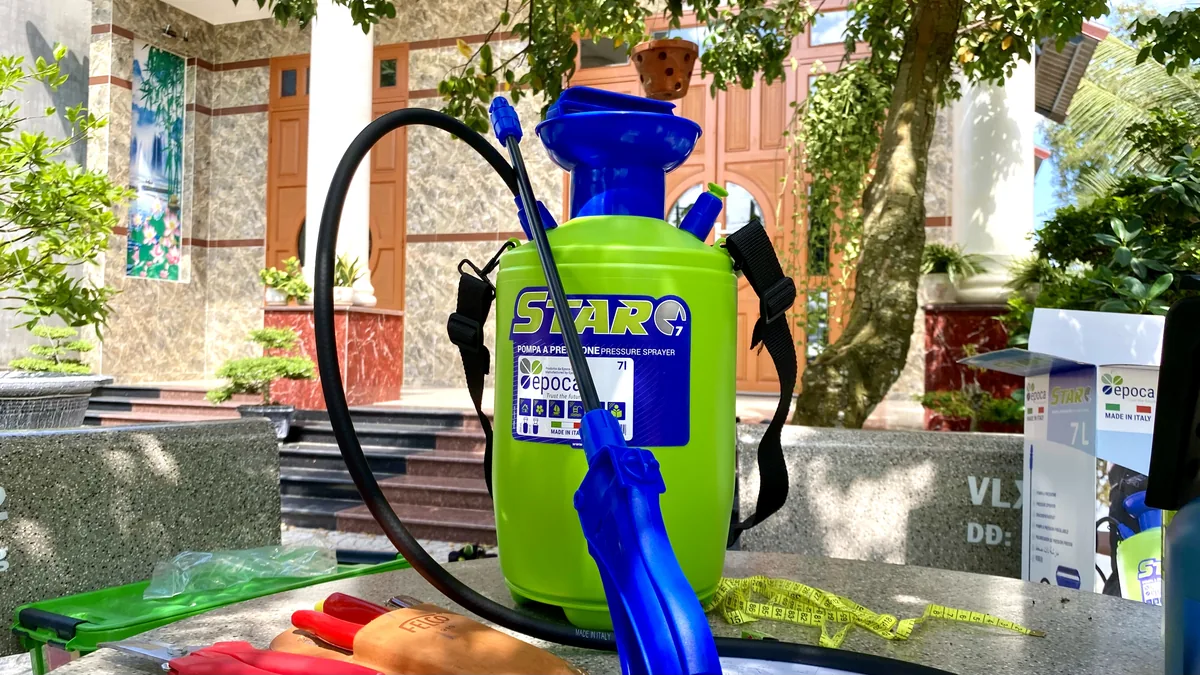

Pressure sprayer 7 litre with detachable lance EPOCA Star 7 for garden care

The 7 litre pressure sprayer EPOCA Star 7 carries 7000 ml of liquid, of which 5600 ml is usable. Pressure is generated by a piston pump built into the tank lid. Sealed joints hold that pressure for long periods, in many cases from one working session to the next. The spray valve opens once the internal pressure passes 3 bar, which keeps the jet steady.

The lance is separate from the tank and links to it through a 2 m flexible hose. A 120 cm waist strap lets the operator walk a garden, greenhouse or yard while spraying. The plastic nozzle is adjustable, so the jet can be changed from mist to a tighter stream. A safety valve releases pressure when work is finished or when the pumped pressure rises above the safe limit.

Features of the 7 litre pressure sprayer EPOCA Star 7

Pump and pressure system

Pumping is done by hand with an integrated piston pump. The seal set keeps the charge inside the tank, so repeated pumping between passes is reduced. The relief valve protects the vessel and vents residual pressure before the cap is opened. The spray valve is rated to 7 bar, while the tank itself works to a maximum of 3 bar.

• Integrated hand piston pump with sealing set
• Maximum tank pressure: 3 bar
• Spray valve rated to 7 bar
• Spray valve opens above 3 bar
• Safety relief valve for venting and overpressure

Pressure is built up before spraying starts, then topped up as the tank empties. Venting through the relief valve before refilling keeps handling simple. Because the seals hold the charge, short interruptions do not force a full re-pumping cycle.

Lance, hose and nozzle

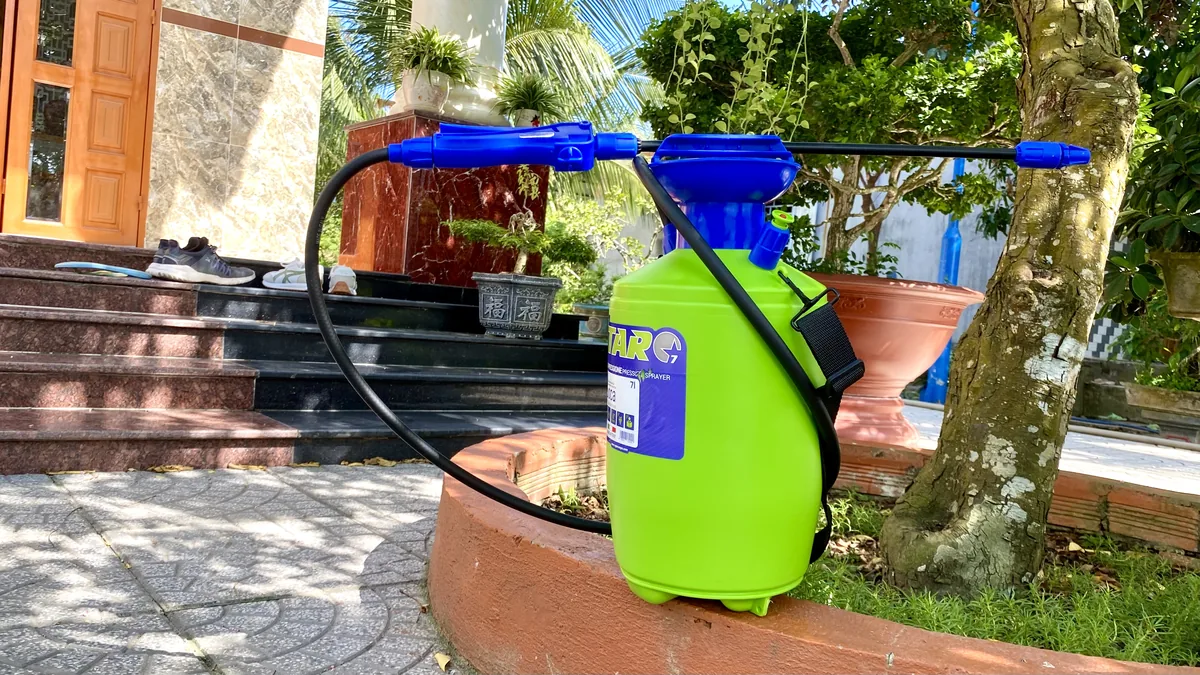

The detachable lance keeps the operator at a distance from the tank body during work. It is joined by a 2 m flexible hose, giving room to reach high shelves, low beds or shrub interiors. The nozzle is made of plastic and the spray pattern is adjusted directly on the lance, without tools or extra parts.

• Detachable lance connected by 2 m flexible hose
• Plastic nozzle with adjustable jet pattern
• Jet adjusted on the lance during use
• 120 cm waist carrying strap included

Adjustment at the lance means the pattern can be changed while spraying continues. A fine mist suits leaves and seedlings, while a tighter jet reaches further. The strap transfers the load to the hip and frees both hands.

Tank body and filling

The filler cap is large and funnel shaped, so solutions can be poured in without a separate funnel. The tank walls are thick, and the base is reinforced for standing on uneven ground. Empty weight of the packed unit is 1.85 kg, which keeps the full sprayer manageable during longer garden rounds.

• Nominal tank capacity: 7000 ml
• Usable capacity: 5600 ml
• Wide funnel-shaped filler cap
• Thick tank wall and reinforced base
• Weight: 1.85 kg

The funnel shape reduces spillage when mixing concentrates with water. The flat, heavy base helps the sprayer stand upright on soil, gravel or paving while it is being filled or pumped.

Common applications

This sprayer suits watering and misting of potted plants, seedlings and ornamental beds.

It is used for applying plant treatment solutions in gardens, nurseries and small greenhouses. Cleaning crews use it to spread detergent or disinfectant solutions over surfaces, vehicles and equipment. The 2 m hose and waist strap make it practical for moving around courtyards, balconies and larger grounds without carrying the tank in hand.

Catalogue and packing data

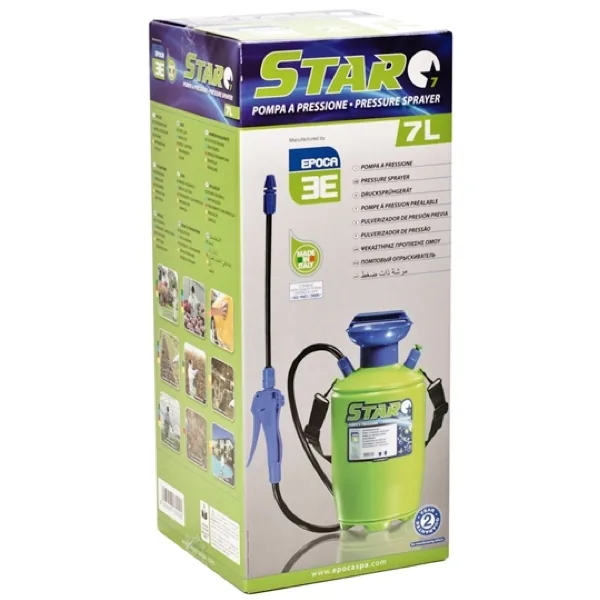

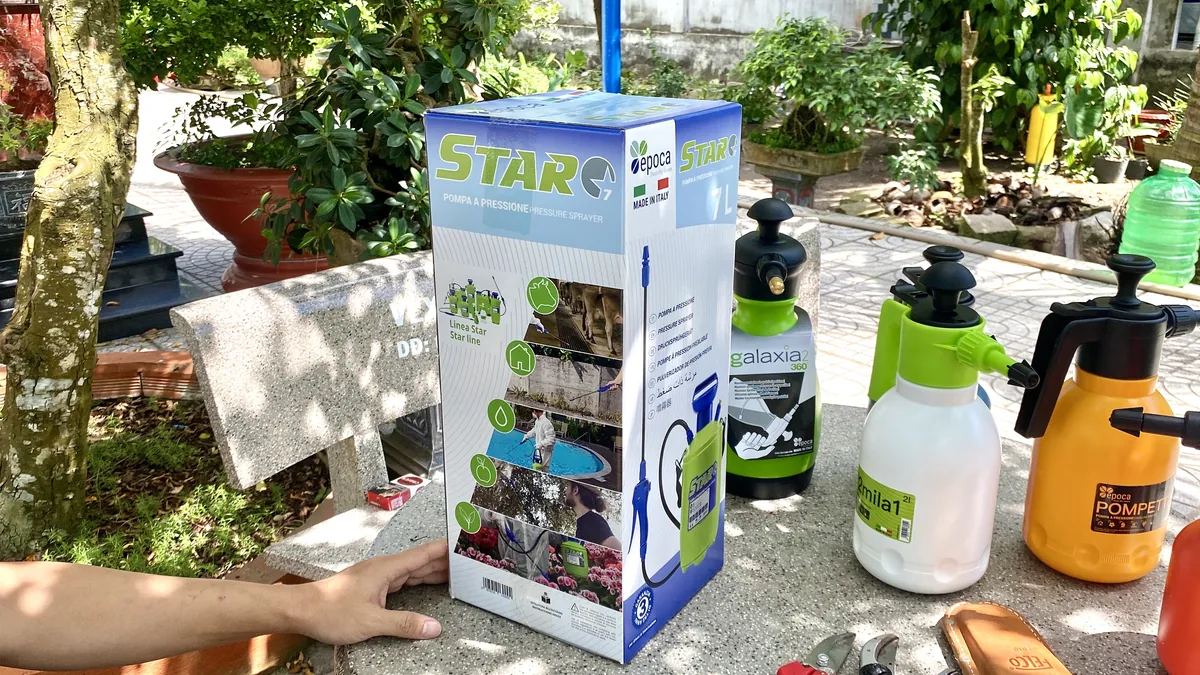

Each unit is supplied fully assembled in its own carton, with the product details printed on the box. Carton dimensions are 19.5 x 19.5 x 46.5 cm and the packed weight is 1.85 kg. For pallet orders, 105 sprayers fit one pallet at these carton dimensions.
