One-handed clamp

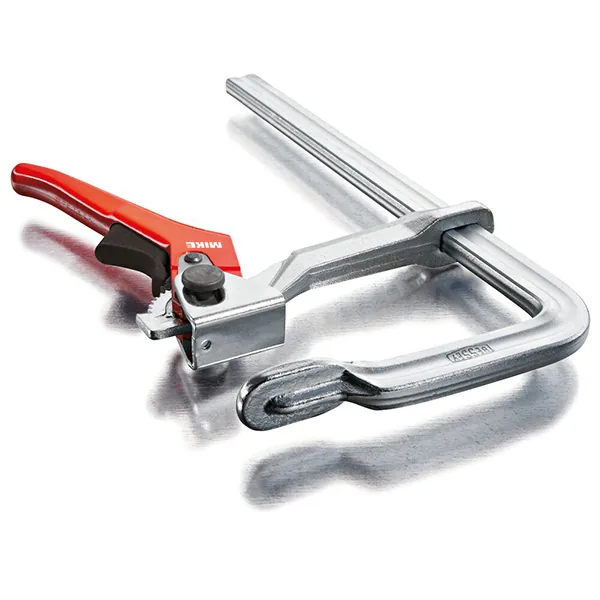

Lever clamp classiX GSH

★ 0.0 (0 reviews)
Sold: 6
Views: 0
Imported from: Germany

Non-slip trigger release Quick – up to 5 times faster than regular clamps Secure – unaffected by vibrations Strong – clamping force up to 7,500 N

SKU: GSH-
8 variants
€73.13 - €147.08
Stock status: Varies by SKU
Indicative price
Description

Product details

  • Non-slip trigger release
  • Quick – up to 5 times faster than regular clamps
  • Secure – unaffected by vibrations
  • Strong – clamping force up to 7,500 N

Areas of application

Metal construction

Furniture and joinery works

  • Interior fittings
  • DIY
  • Locksmith work
  • Clamping with lever forces - fast, safe, strong

Safety information

Use the product only in its original condition.

Use the product only for its intended purpose. Improper use can cause personal injury or property damage.

  • Wear safety glasses to protect your eyes.
  • Wear work or assembly gloves to protect your hands.
  • Wear safety footwear to protect your feet.
  • Thew handle must always be free of oil and grease to prevent slipping.
  • Keep the product out of reach of children.
  • Small parts must not be swallowed or inserted into body openings.
  • Check the product for damage before each use and make sure that all moving parts are working properly.
  • A damaged product must not be used.
  • Follow the care instructions for each product – see vinatools.com.
  • Use only original BESSEY spare parts
  • The clamping tool must not be used for lifting, pulling or leaning.
  • The clamping tool must not be used to secure cargo during transportation.
  • The clamping tool may only be tightened by hand without any additional aids.
  • The clamping tool must not be used for permanent installation.
  • Regularly check that the end stop is working properly when using clamps.

Material / Surface

Fixed and sliding bracket made of tempered steel, galvanised

Lever made of zinc die-cast, powder-coated

  • Release button made of plastic
  • Connecting elements made of steel, galvanised or phosphated

Care instructions

Regular maintenance is necessary – only then can a secure hold be guaranteed (no slipping of the sliding bracket).

Clean the rails with solvent.

  • Always keep the rail free of grease, oil or dried glue, waxes and silicone-based release agents.
  • Clean and oil the spindle regularly.
  • If the rail is shiny, roughen both narrow sides with emery cloth (100 grain).
  • Clean and oil the pawl regularly.

Accessories / Suitable for

  • Edge clamp KT5 | Practical accessory for clamping edges and difficult to reach areas - Suitable for conventional screw clamps with a max. rail thickness of 13 mm | https://vinatools.com/static/bessey-mirror/pages/edge-clamp-kt5-7779b5d166.html
SpecificationValue
Openingmm120
Throat depthmm60
Railmm13,5x6,5
Weightkg0.494

Specifications

  • Cảo chữ F tự động kẹp nhanh kiểu tay gạt classiX
  • Tiết kiệm thời gian thao tác lên đến 5 lần so với cảo thông thường
  • Lực kẹp siêu khỏe 7500N, đảm bảo giữ chặt phôi gia công an toàn
  • Không bị ảnh hưởng bởi rung động
  • Má kẹp bằng thép cứng đã xử lý nhiệt, mạ kẽm, định hướng linh hoạt
  • Thanh ray và ngàm trên nối liền nguyên khối
  • Thiết kế chắc chắn, chịu lực tốt, chống xoắn
  • Cần kẹp làm từ hợp kim kẽm đúc, phủ sơn tĩnh điện chống bám bẩn
  • Các phần kết nối bằng thép phủ kẽm hoặc phốt phát, nút nhả bằng nhựa
  • Ứng dụng: lắp đặt nội thất, gia công kim khí, mộc, thợ nguội, DIY
  • Bảo dưỡng: cần vệ sinh ray định kỳ bằng dung môi
  • Giữ ray sạch không dính dầu mỡ, bôi dầu trục vít và bánh răng
  • Lưu ý an toàn: chỉ kẹp thủ công, không dùng để nâng
  • kéo hoặc vận chuyển
  • không chỉnh sửa cảo, chỉ dùng linh kiện chính hãng
Tags / Keywords: Lever clamp classiX GSH GSH-
Price list & Ordering
Drag to reorder
SKU Code Price (EUR) Buy Stock Jaw depth Jaw opening Rail section Weight
GSH12 €73.13 60mm 120mm 13.5x6.5mm 494g
GSH16 €80.06 80mm 160mm 16x7.5mm 635g
GSH20 €91.94 100mm 200mm 19.5x9.5mm 1,080g
GSH25 €105.85 120mm 250mm 22x10.5mm 1,438g
GSH30 €125.80 140mm 300mm 25x12mm 2,223g
GSH40 €132.07 120mm 400mm 25x12mm 2,405g
GSH50 €141.88 120mm 500mm 25x12mm 2,585g
GSH60 €147.08 120mm 600mm 25x12mm 2,790g
Optional Accessories
SKU Image Price VNĐ Product name & short description
KT5 Edge clamp
€34.36
Edge clamp
Practical accessory for clamping edges and difficult to reach areas Suitable for conventional screw clamps with a max. rail thickness of 13 mm
