Wood carving chisel set Kirschen 5697000, 61 HRC

A wood carving chisel set of six tools, packed in a fitted wooden box, forms the core of this Kirschen 5697000 assortment. Each chisel carries a pear-shaped red beech handle. The blades are hardened to 61 HRC, so the cutting edge holds its geometry through repeated sharpening cycles. The set is aimed at ornament work, relief carving and chip carving cuts on wooden surfaces.

The six chisels are supplied under the codes 5601002, 5601006, 5601010, 5606006, 5606010 and 5639004. Blade widths, profiles and cutting angles differ between them. That mix lets the user move from straight stop cuts to curved sweeps without changing tool families. Manufacturing takes place in Germany. Cabinetmakers, model makers and carving hobbyists all use this type of assortment. The wooden box keeps the edges apart during storage and transport.

Wood carving chisel set Kirschen 5697000 in detail

Technical specifications of the 6-piece set

Blade hardness of 61 HRC is the defining figure here. It keeps the bevel stable when cutting hardwood end grain and fine detail. The pear-shaped handle spreads hand pressure across the palm, which helps during long carving sessions. Handles are turned from red beech, a dense native hardwood. Edges leave the factory sharpened, so the chisels can go straight to the bench.

• Number of chisels in the set: 6
• Blade hardness: 61 HRC
• Handle material: red beech
• Handle shape: pear-shaped
• Packing: wooden box with individual compartments
• Edges pre-sharpened, ready for use

Handle geometry also affects control. A pear profile lets the carver rotate the tool between thumb and fingers while steering the cut. Because the blades differ in width and sweep, the operator can match the tool to the radius being carved. Keep a honing stone nearby and refresh the bevel before it starts crushing fibres rather than slicing them.

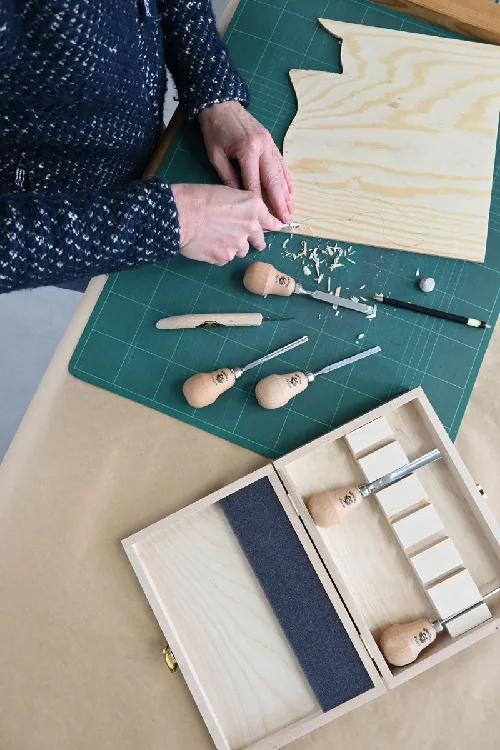

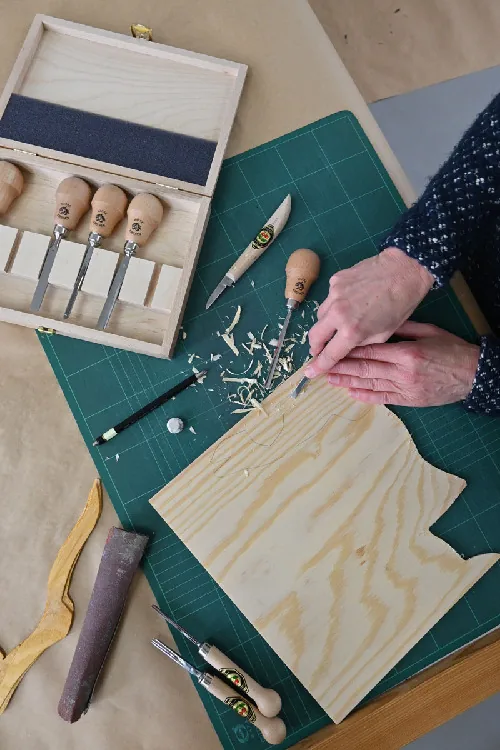

Set composition and storage case

Six separate codes make up the assortment, each serving a specific carving task. Straight flat blades cut outlines and clean flat backgrounds. Sweeps remove waste from curved grounds and shape rounded forms. Chip carving profiles handle the angled notches typical of kerbschnitt patterns. The wooden box has seated slots, so every chisel returns to a fixed position after work.

• Chisel codes included: 5601002, 5601006, 5601010, 5606006, 5606010, 5639004
• Blade forms: mixed profiles and cutting angles
• Case: wooden box with a slot per chisel
• Suited to ornament, relief and chip carving cuts

Fixed slots do more than tidy the kit. They stop blade-to-blade contact, which is the usual cause of nicked edges in a loose tool roll. Identification is faster too, since each position holds the same chisel every time. The box also makes the set easy to carry between a workshop bench and an on-site job.

Common applications

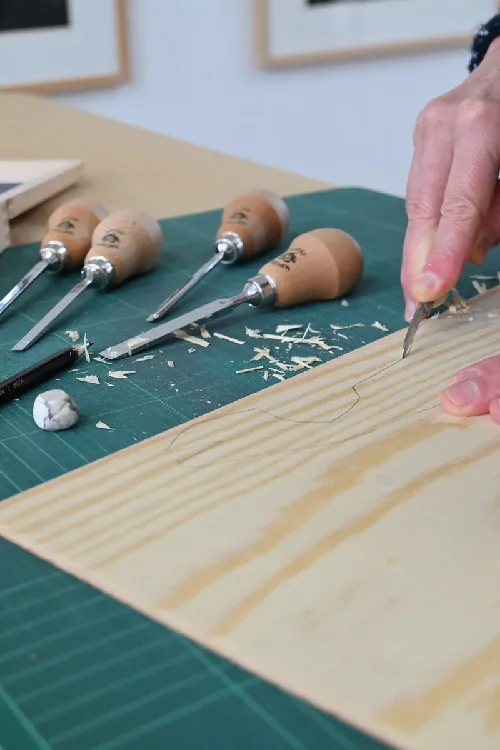

Decorative carving on wood is the main field of use. Typical jobs include ornament patterns, raised relief panels and fine chip carving notches. Interior joiners use the set for carved mouldings and door panels. Picture frame makers cut profiles and corner details. Craft workshops rely on it for handmade decorative objects. Restorers also use such chisels when recutting missing detail on antique furniture. Both trade carvers and experienced hobbyists work with this class of tool.

Care and handling

Store the chisels in the supplied wooden box and keep the edges clear of other hard objects. Wipe shavings and dust from the blades after each session, then check the edge and hone it when it dulls. Keep the beech handles dry. Long exposure to high humidity can warp or crack turned wood.
