Kirschen 3406000 Wood Carving Chisel Set, 6 Pieces

This wood carving chisel set includes six essential tools covering the main profiles needed for relief and figure carving. The set contains three chisels and three carving knives, all packed in a sturdy cardboard box. The blades are made from high-speed steel (HSS), known for excellent edge retention and wear resistance. Each blade is ground and polished to a mirror finish, ensuring smooth, clean cuts. The handles are crafted from seasoned, turned wood with an octagonal cross-section for improved grip and control.

Each handle measures 110 mm in length and 20 mm in diameter, providing a consistent grip across the set. The wood is finished with a clear gloss varnish, and each tool features a laser-marked code on the handle for easy identification. Knife blades are securely attached to the handles with two brass rivets. Before packaging, the cutting edges are coated with an anti-rust film that should be removed before first use. The Kirschen 3406000 set is manufactured in Germany.

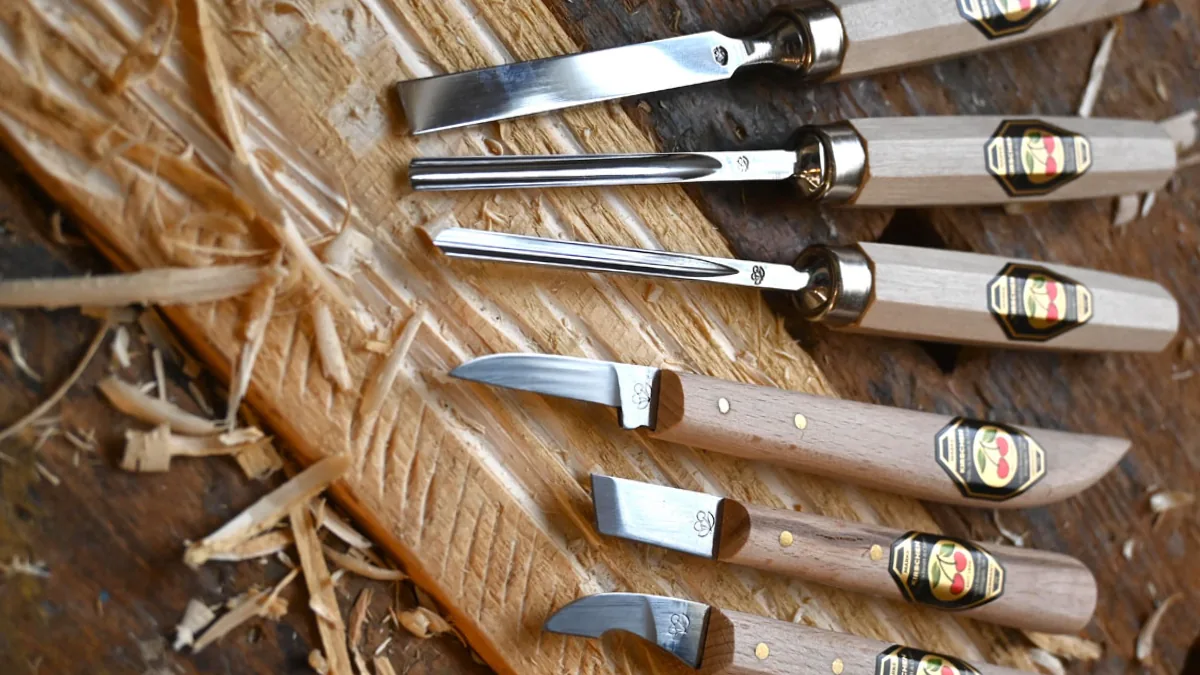

Contents of the Wood Carving Chisel Set 3406000

The six tools are selected to function as a cohesive set. Three chisels offer straight, V-shaped, and half-round profiles, while three knives are designed for skew cuts, fine detail, and curved work. This combination allows a carver to rough out shapes and complete detailed finishing without switching brands or handle sizes during a project.

• 1 x flat chisel, blade width 10 mm, blade length 75 mm
• 1 x V-parting chisel, 4 mm
• 1 x half-round gouge, Ø6 mm
• 1 x skew knife, 12 mm
• 1 x pointed knife, blade length 35 mm
• 1 x curved-tip knife
• Packed in a cardboard box

Each tool is laser-marked with its code on the handle, making identification easy when stored in a tool roll or drawer. The uniform handle dimensions ensure consistent grip and hand positioning when switching between chisels and knives.

Blade Material and Finish

The cutting edges are made from high-speed steel (HSS), which maintains sharpness in hardwood and withstands repeated honing. The mirror-polished finish reduces friction as the bevel enters the wood fibers, which is especially beneficial for shallow relief carving. A protective anti-rust film is applied at the factory for safe transport and storage.

• Blade material: high-speed steel HSS
• Surface: mirror-polished grinding
• Corrosion protection film applied before packing
• Laser-marked tool codes on the handles

Remove the protective film with a solvent-free cloth before first use and dry the steel thoroughly. Lightly oil the blades after use in humid environments. Honing on a fine stone or strop quickly restores the polished bevel and preserves the original profile geometry.

Handles and Assembly

The turned wooden handles feature an octagonal cross-section, preventing the tools from rolling off the workbench and allowing the user to sense blade orientation by touch. All six handles share the same dimensions. Knife blades are mechanically fixed with two brass rivets for a secure joint between steel and wood at the ferrule area.

• Handle material: seasoned turned wood
• Handle cross-section: octagonal
• Handle length: 110 mm
• Handle diameter: 20 mm
• Finish: clear gloss varnish
• Knife blade fixing: two brass rivets

These tools are primarily driven by hand pressure, so handle geometry directly influences control. The flat facets serve as index points for rotating the gouge during sweeping cuts. Keep the varnish free from resin and glue, as a sticky surface can hinder control during extended carving sessions.

Common Applications for the Wood Carving Chisel Set

This set is ideal for relief carving, figure work, lettering, and decorative pattern work in joinery. The 10 mm flat chisel is used for flattening surfaces and removing waste. The 4 mm V-parting tool creates crisp lines and decorative grooves. The Ø6 mm half-round gouge shapes hollows and rounded contours. The 12 mm skew knife trims edges and corners. The 35 mm pointed knife accesses tight detail areas, while the curved-tip knife follows flowing ornamentation.

Catalog Data for Set 3406000

Catalog entry: carving tool set in cardboard box, 6 pieces. Blades made from high-speed steel HSS, mirror-polished, corrosion-protected for shipping. Handles are turned wood, octagonal, 110 mm long, Ø20 mm, clear varnish, laser-marked codes, knife blades secured with two brass rivets. Contents: flat chisel 10 mm x 75 mm, V-parting chisel 4 mm, half-round gouge Ø6 mm, skew knife 12 mm, pointed knife 35 mm, curved-tip knife. Made in Germany.
