Máy khoan từ, 60 mm, 220 V. Euroboor ECO.i6 - 1/8, M3

Name: Máy khoan từ, 60 mm, 220 V. Euroboor ECO.i6 - 1/8, M3
Brand: EUROBOOR
SKU: ECO.i6

★ 0.0 (0 đánh giá) • Đã bán 0

Nhập khẩu từ: Hà Lan

Magnetic drilling machine, annular cutters max. dia 60 millimeter, power supply tension 220 - 240 Volt, power supply frequency 50 - 60 Hertz, rotation direction bidirectional. RPMi Technology.

SKU: ECO.i6

0 đ

Trạng thái kho: Hết hàng

Giá đã bao gồm VAT

Tải catalogue PDF

Mô tả

Take control with the ECO.i6 The Euroboor ECO.i6 introduces a new generation of magnetic drilling machines. With the i-Series, Euroboor brings induction technology into portable magnetic drilling. Power is generated through magnetic fields instead of carbon brushes, direct electrical contact or permanent magnets, reducing wear and heat build-up for continuous use in demanding environments.

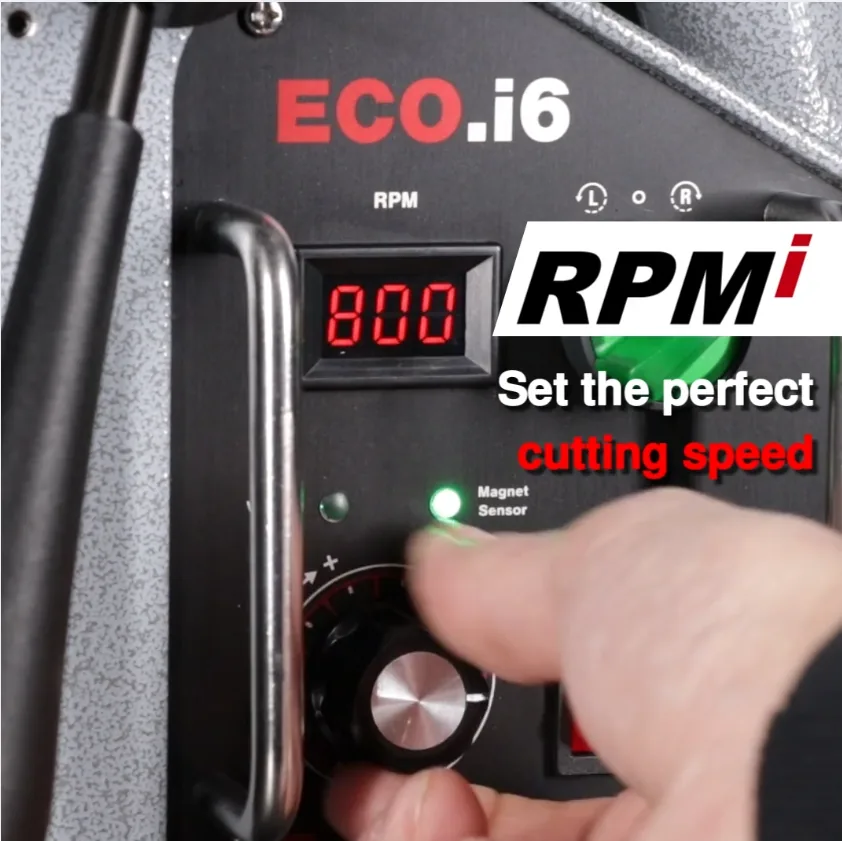

In the ECO.i6, induction power is managed by RPMi , integrating motor, gearbox, digital display and speed control: • RPMi induction motor delivers stable torque across the full speed range for all diameter drills, with minimal speed drop under load (max 10%). • RPMi gearbox transfers power accurately across 96 – 927 rpm and digitally transmits exact spindle speed. • RPMi digital display shows real-time spindle speed for precise setting and monitoring of RPM for the selected cutter and application. • RPMi speed controller enables accurate adjustment for different cutters (TCT or HSS), diameters, and materials.

The Euroboor cutting speed calculator helps you select the correct RPM for your selected cutter type, material and diameter. Simply scan the QR code on your machine for direct access. Gyro-Tec, SensorTec, overload, and power surge protection ensure safe operation. The ECO.i6 supports drilling, countersinking, tapping and features internal cooling, a two-speed oil-lubricated gearbox and a Quick-Switch Capstan Hub.

Combined with its robust construction and integrated motor cable, the ECO.i6 delivers controlled, reliable performance shift after shift.

EAN: 8720999142919

Specification	Value
Order code	ECO.i6
EAN code	8720999142919
minimum diameter threading (inch)	1/8
minimum diameter threading (millimeter)	M3
maximum diameter threading (inch)	13/16
maximum diameter threading (millimeter)	M20
minimum diameter annular cutters (inch)	7/16
minimum diameter annular cutters (millimeter)	12
maximum diameter annular cutters (inch)	2 23/64
maximum diameter annular cutters (millimeter)	60
minimum diameter countersinking (inch)	3/8
minimum diameter countersinking (millimeter)	10
maximum diameter countersinking (inch)	2 23/64
maximum diameter countersinking (millimeter)	60
minimum diameter twist drills (inch)	1/6
minimum diameter twist drills (millimeter)	1.5
maximum diameter twist drills (inch)	15/16
maximum diameter twist drills (millimeter)	23
connection 1 model	inside
connection 1 type	morse taper
connection 2 model	inside
connection 2 size (inch)	3/4
connection 2 size (millimeter)	19.05
connection 1 morse taper / drill chuck class	MT3
connection 2 type	Weldon
stroke (inch)	6 15/32
stroke (millimeter)	165
magnet length (inch)	6 5/8
magnet length (millimeter)	168
magnet width (inch)	3 5/16
