Trang chủ Máy khoan từ Máy khoan từ, 40 mm, 220 V. Euroboor ECO.40S+/P - 7/16, 12

Máy khoan từ

Máy khoan từ, 40 mm, 220 V. Euroboor ECO.40S+/P - 7/16, 12

Đã bán: 0

Nhập khẩu từ: Hà Lan

Xuất xứ: Trung Quốc

Magnetic drilling machine, annular cutters max. dia 40 millimeter, power supply tension 220 - 240 Volt, power supply frequency 50 - 60 Hertz, rotation direction clockwise.

SKU: ECO.40S+-P

0,0 đ

Trạng thái kho: Hết hàng

Giá tham khảo, gồm VAT

Tải catalogue PDF

Mô tả

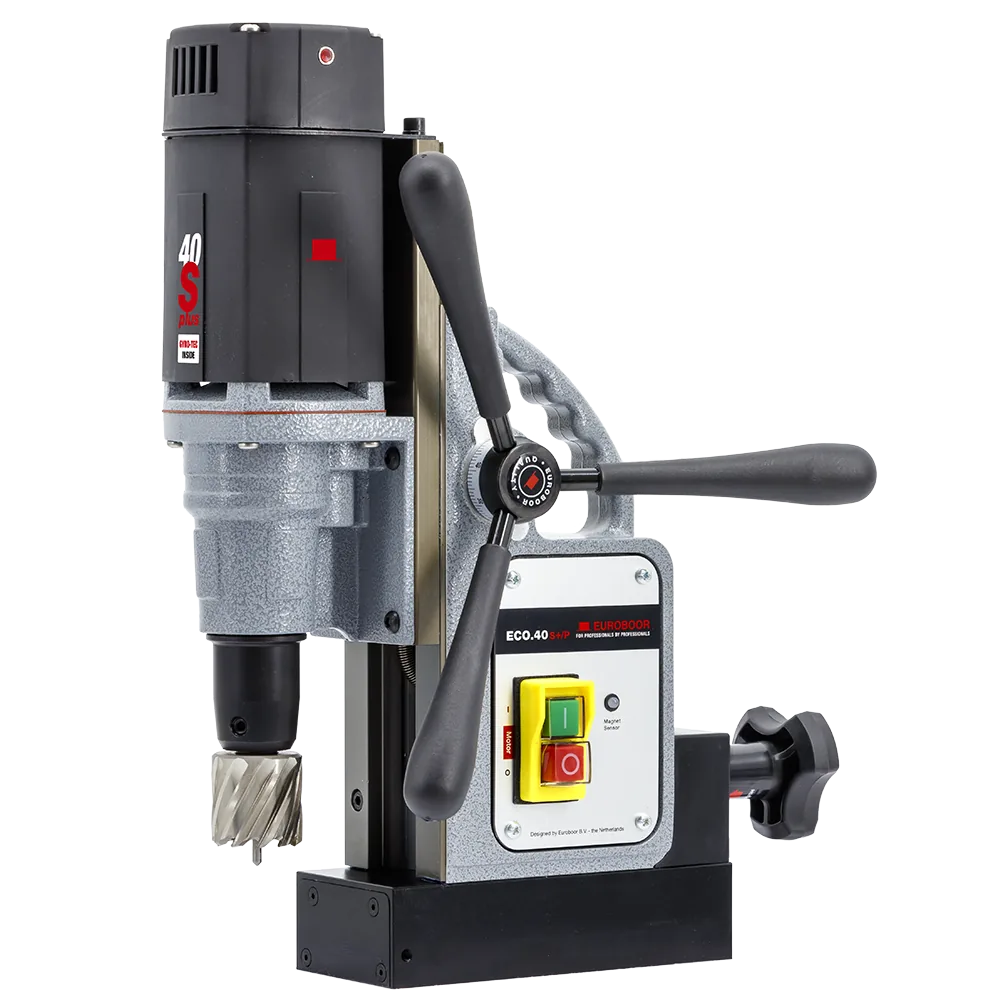

The ECO.40S+/P Magnetic Drilling Machine is engineered with a commitment to your workplace security, effectively making it the safest magnetic drilling machine in the world. It has robust safety features that are seamlessly integrated into its operation, ensuring your peace of mind during every drilling job.

The “P” in ECO.40S+/P stands for its stable and energy-efficient permanent magnet, which requires no power source to function. This means the magnet does not fail when your machine somehow loses power during operation. This makes this machine exceptionally suitable for vertical or upside-down jobs.

Another benefit of the permanent magnet, is its ability to stick to thinner surfaces than a common electromagnet and the fact that it cannot overheat. The Euroboor ECO.40S+/P magnetic drilling machine with integrated motor cable, drills up to ø 40 mm or 1 9/16 inch. Our portable ECO.40S+/P magnetic drilling machine benefits from an oil lubricated gearbox. .

This machine also has the Gyro-Tec Safety feature, which incorporates a gyroscopic sensor that detects sudden movements and shuts down the motor automatically, ensuring the operator’s safety at all times. Say goodbye to costly repairs!

This machine is equipped with an automatic shut-off feature that kicks in when the carbon brushes need to be replaced – indicated by the carbon brush wear LED indicator -- preventing damage to the high-end armature.

The machine even protects itself, with its Power Fluctuation and Power Surge Protection: Whether it's power fluctuation or voltage spikes, this machine shuts off, which prevents the machine from being damaged. Never compromise on safety and choose the safest mag drill in the world.

EAN: 8720847531148

Specification	Value
Order code	ECO.40S+/P
EAN code	8720847531148
minimum diameter annular cuttersinch	7/16
minimum diameter annular cutters (millimeter)	12
maximum diameter annular cuttersinch	1 9/16
maximum diameter annular cutters (millimeter)	40
minimum diameter countersinkinginch	3/8
minimum diameter countersinking (millimeter)	10
maximum diameter countersinkinginch	1 3/4
maximum diameter countersinking (millimeter)	45
minimum diameter twist drillsinch	1/16
minimum diameter twist drills (millimeter)	1
maximum diameter twist drillsinch	5/8
maximum diameter twist drills (millimeter)	16
connection 1 model	inside
connection 1 sizeinch	3/4
connection 1 size (millimeter)	19.05
connection 1 type	Weldon
strokeinch	5 7/8
stroke (millimeter)	150
magnet lengthinch	7 3/16
magnet length (millimeter)	183
magnet widthinch	3 3/4
magnet width (millimeter)	85
magnet heightinch	1 3/4
magnet height (millimeter)	45
minimum heightinch	12 3/16
minimum height (millimeter)	310
maximum heightinch	18 1/8
maximum height (millimeter)	460
