Magnetic drilling machine, 100 mm, 220 V. Euroboor TUBE.100S+/T - 1/8, M3

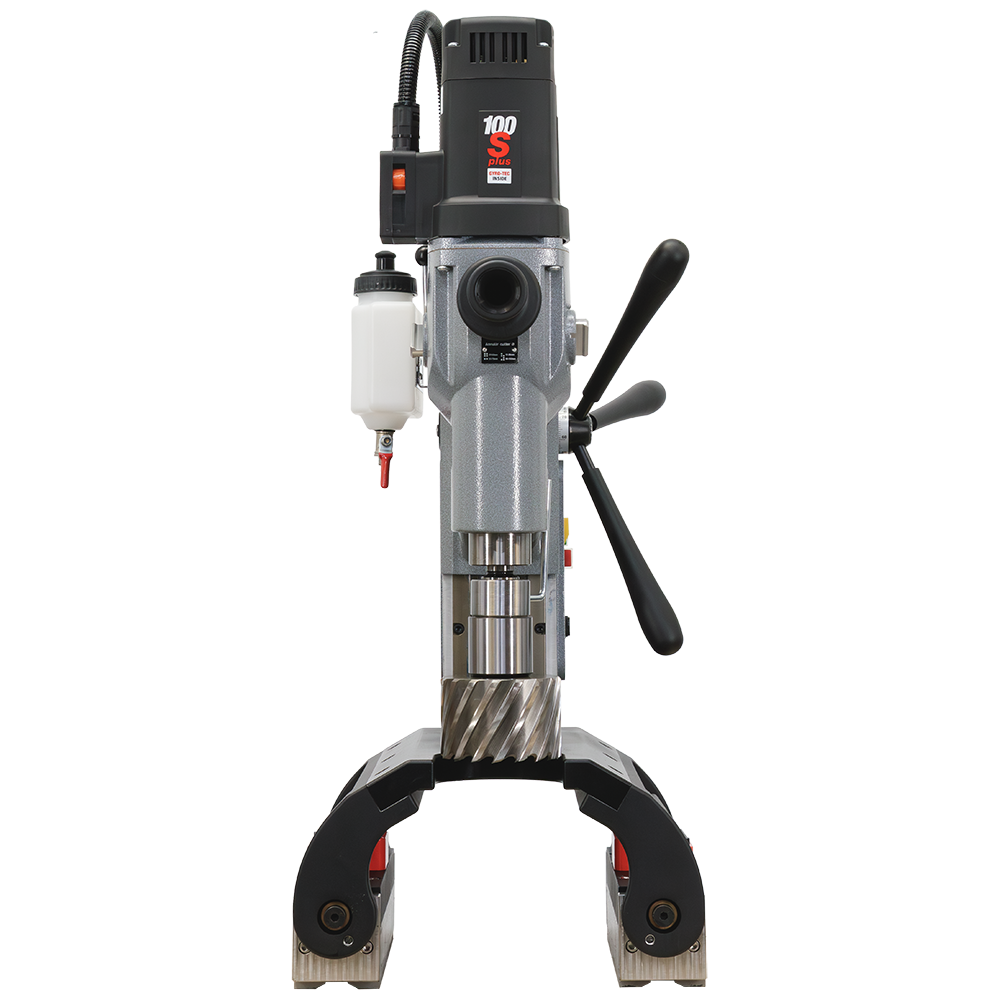

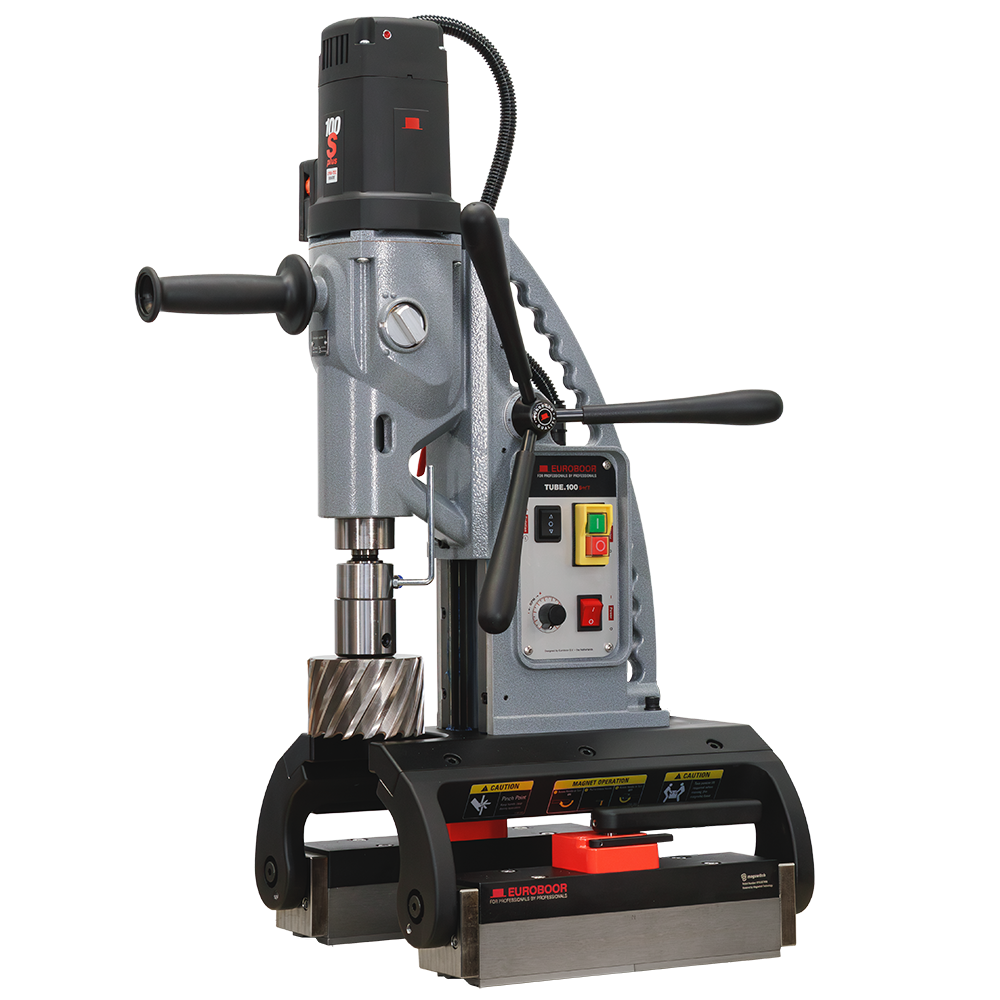

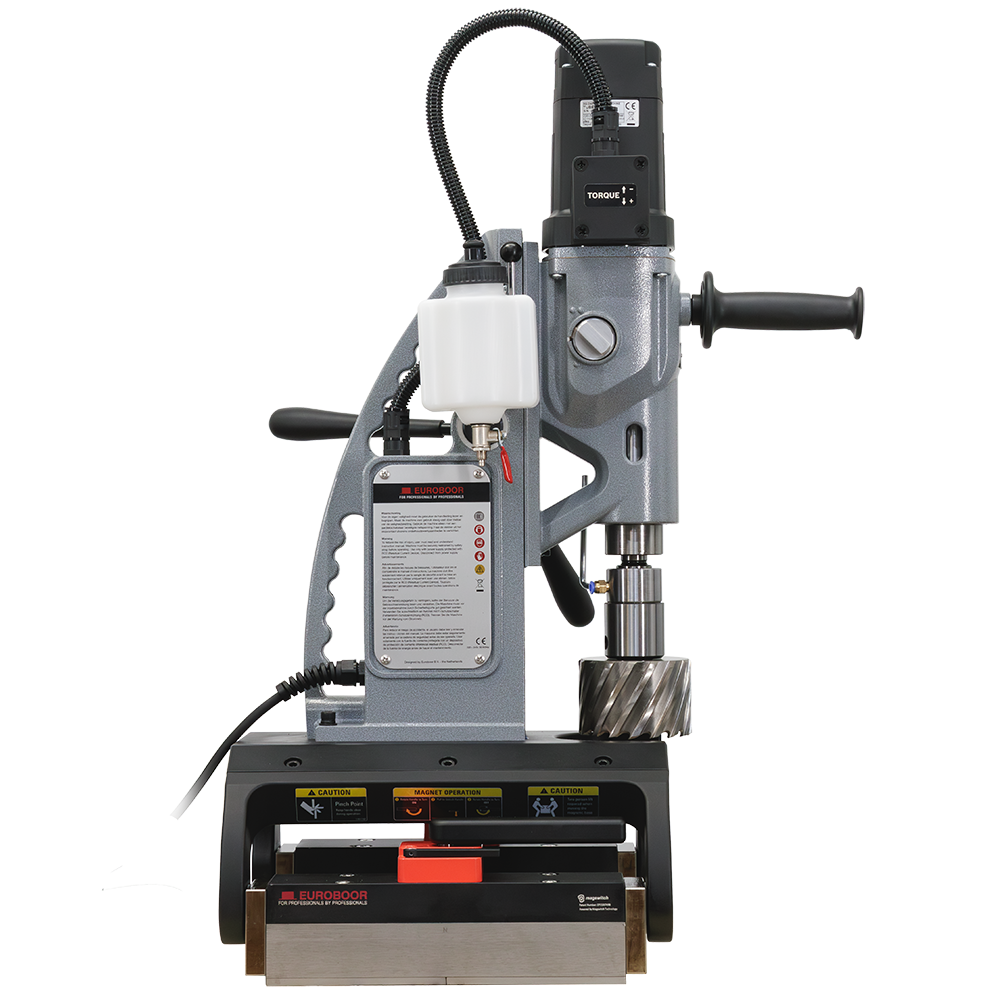

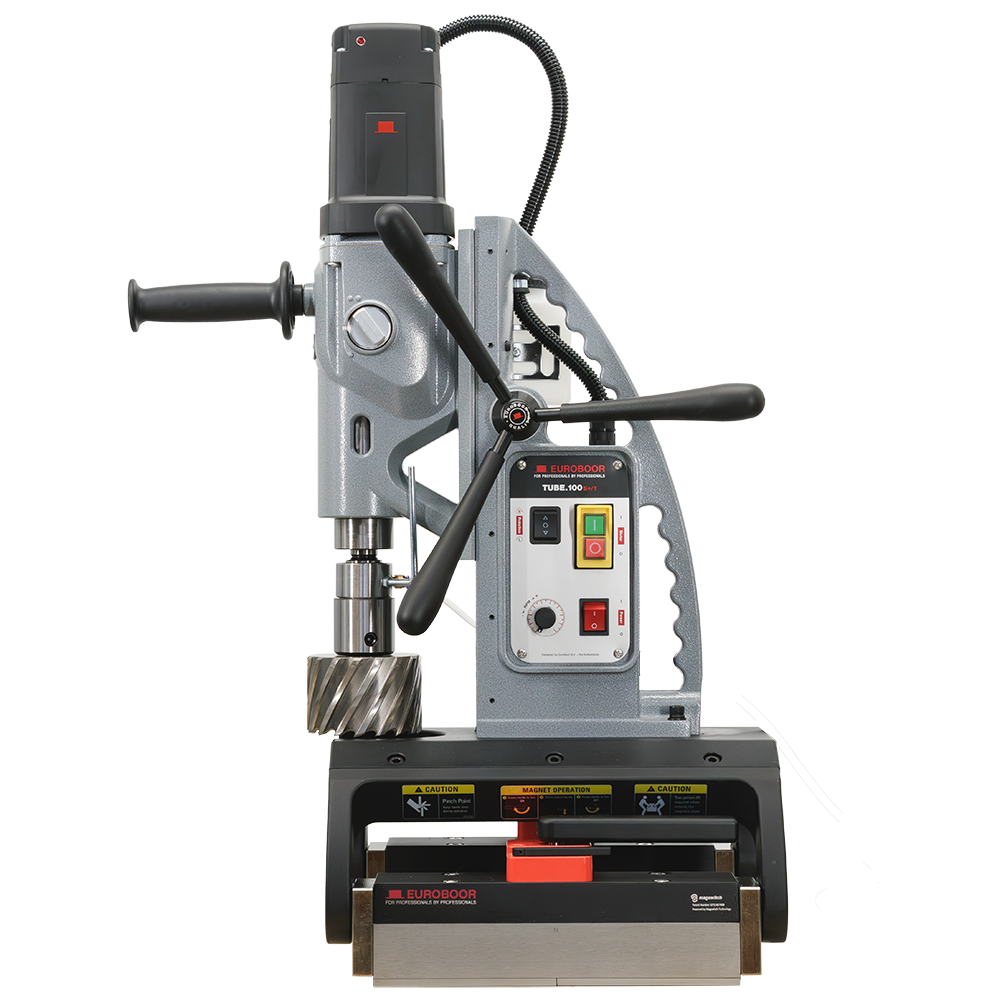

Name: Magnetic drilling machine, 100 mm, 220 V. Euroboor TUBE.100S+/T - 1/8, M3
Brand: EUROBOOR
SKU: TUBE.100S+/T

★ 0.0 (0 reviews) • Sold 0

Imported from: Netherlands

Magnetic drilling machine, annular cutters max. dia 100 millimeter, power supply tension 220 - 240 Volt, power supply frequency 50 - 60 Hertz, rotation direction bidirectional.

SKU: TUBE.100S+/T

0 đ

Stock status: Hết hàng

Price includes VAT

Download PDF catalog

Description

Are you facing a job that requires drilling an unusually large hole in a pipe? Well, your wish is Euroboor’s command! Where conventional pipe drilling machines reach their limit, the TUBE.100S+/T continues, offering controlled drilling up to Ø 100 mm (4”) and tapping up to M30 (1 3/16”) on both pipe constructions and flat materials.

Thanks to its pivoting permanent magnet, the TUBE.100S+/T can be used on pipes with a minimum diameter of 140 mm (5 ½”), even on material as thin as 3.5 mm (1/8”). The machine is powered by a strong 1,900 W (17.3 A) motor.

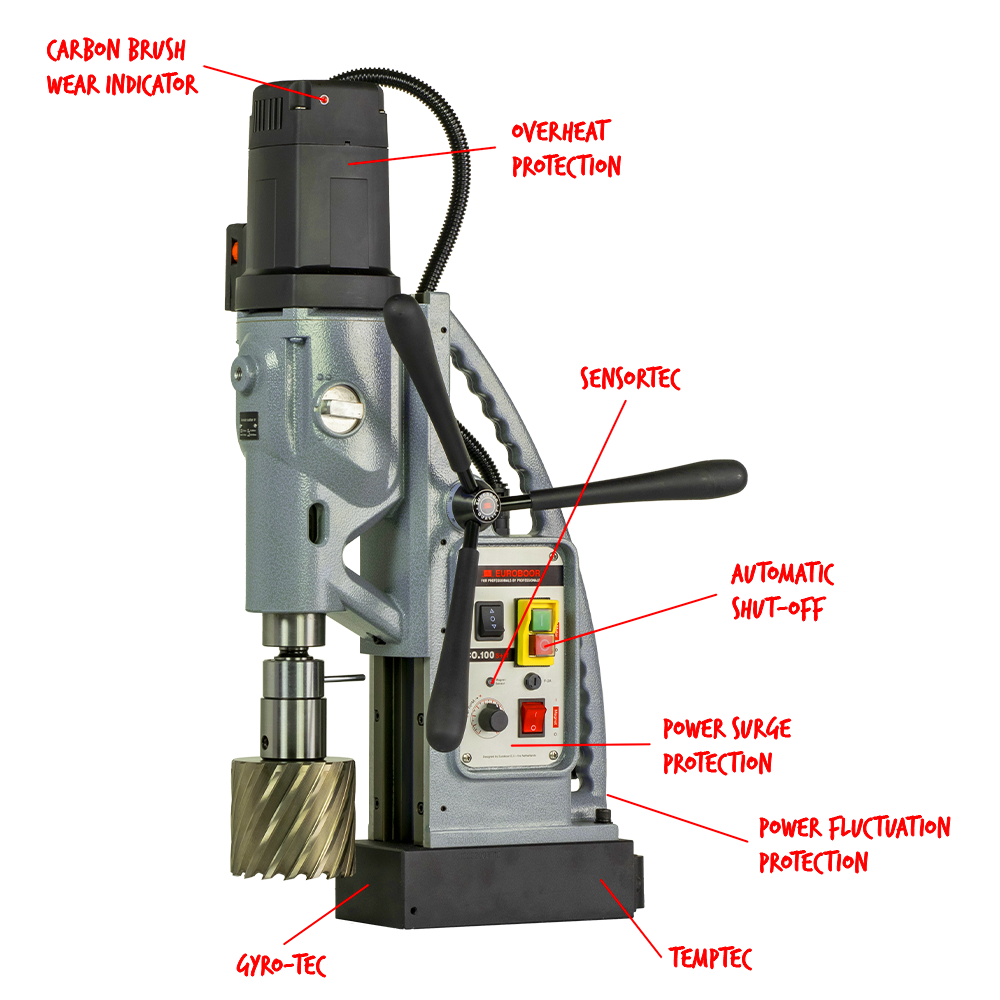

Because the TUBE.100S+/T has an oil-lubricated four-speed gearbox with electronic speed adjustment and right/left rotation, it delivers the torque and speed control needed for different cutters, tap sizes, and materials. Innovative electronics provide overload protection and help protect the machine, tool, and workpiece, even when working with unstable power supply.

The integrated GYRO-TEC sensor shuts down the machine automatically in case of excessive vibration or sudden movement, improving user safety and reducing maintenance costs. The TUBE.100S+/T is a reliable choice for professionals who need controlled, high-capacity drilling and tapping on pipe constructions.

EAN: 8720999139735

Specification	Value
Order code	TUBE.100S+/T
EAN code	8720999139735
minimum diameter threading (inch)	1/8
minimum diameter threading (millimeter)	M3
maximum diameter threading (inch)	1 3/16
maximum diameter threading (millimeter)	M30
minimum diameter annular cutters (inch)	7/16
minimum diameter annular cutters (millimeter)	12
maximum diameter annular cutters (inch)	4
maximum diameter annular cutters (millimeter)	100
minimum diameter countersinking (inch)	3/8
minimum diameter countersinking (millimeter)	10
maximum diameter countersinking (inch)	1 3/16
maximum diameter countersinking (millimeter)	105
minimum diameter twist drills (inch)	1/16
minimum diameter twist drills (millimeter)	1
maximum diameter twist drills (inch)	1 1/4
maximum diameter twist drills (millimeter)	32
connection 1 model	inside
connection 1 size (inch)	1 1/4
connection 1 size (millimeter)	31.75
connection 2 morse taper / drill chuck class	MT3
connection 1 type	Weldon
connection 2 model	outside
connection 2 type	morse taper
stroke (inch)	10 1/4
stroke (millimeter)	260
magnet length (inch)	13 5/16
magnet length (millimeter)	338
magnet width (inch)	14 3/4
