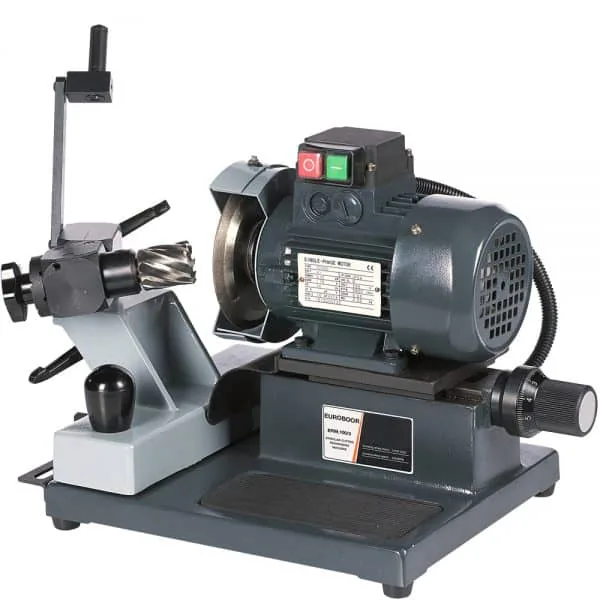

For HSS cutters. The Euroboor ERM.100/3 sharpening machine sharpens HSS cutters between ø 12 mm (1/2″) and 44 mm (1 3/4″) in cutting depths between 25 mm (1″) and 55 mm (2 3/16″) with great ease. The laser guided cutter alignment ensures correct positioning of the cutting edge to the wheel where the easy angle adjustments makes alignment to the original geometry easy and simple. Standard supply: • CBN Grinding wheel (Resharping) for HSS
EAN: 8718858034420
| Specification | Value |
|---|---|
| Order code | ERM.100/3 |
| EAN code | 8718858034420 |
| connection 1 model | inside |
| connection 1 size (inch) | 3/4 |
| connection 1 size (millimeter) | 19.05 |
| connection 1 type | Weldon |
| connection 2 model | inside |
| connection 2 size (inch) | 1 1/4 |
| connection 2 size (millimeter) | 31.75 |
| connection 2 type | Weldon |
| length (millimeter) | 480 |
| width (millimeter) | 300 |
| height (millimeter) | 320 |
| nett weight (kilogram) | 28 |
| system of measurement | mm (metric) |
| application | resharpening |
| rotation speed gear 1 (rotations per minute) | 2800 |
| motor power (Watt) | 250 |
| power supply frequency (Hertz) | 50 - 60 |
| power supply current | AC |
| power supply connection | plug according CEE 7/7 |
| power supply source | mains supply |
| power supply type | electric |
| power supply tension (Volt) | 220 - 240 |
| maximum noise emission (decibel) | 70 |
