Pipe Freezing Kit Eskimo Set 1/8-2"/10-60 mm REMS 130002 R

Name: Pipe Freezing Kit Eskimo Set 1/8-2"/10-60 mm REMS 130002 R
Brand: REMS
SKU: 130002 R
Price: 23962000.0 VND
Availability: OutOfStock

★ 0.0 (0 reviews) • Sold 0

Imported from: Germany

Origin: Made in Germany

The Eskimo Set 1/8-2"/10-60 mm REMS 130002 R is a CO2 pipe freezing kit designed for maintenance and repair of steel, copper, plastic, and composite pipes with diameters from 10 to 60 mm (1/8" to 2"). The set includes freeze collars in ten sizes, high-pressure hoses, injector handles, and a robust plastic case, supporting safe and efficient pipe isolation without draining the system.

SKU: 130002 R

23.962.000 đ

Stock status: Hết hàng

Price includes VAT

Download PDF catalog

Description

Eskimo Set 1/8-2"/10-60 mm REMS 130002 R is engineered for freezing unemptied pipes using carbon dioxide (CO2) as the refrigerant. This system enables maintenance and repair work on water and heating pipes without the need to drain the lines, minimizing downtime and operational disruption. The kit is suitable for steel, copper, plastic, and composite pipes with diameters ranging from 10 mm to 60 mm (1/8" to 2").

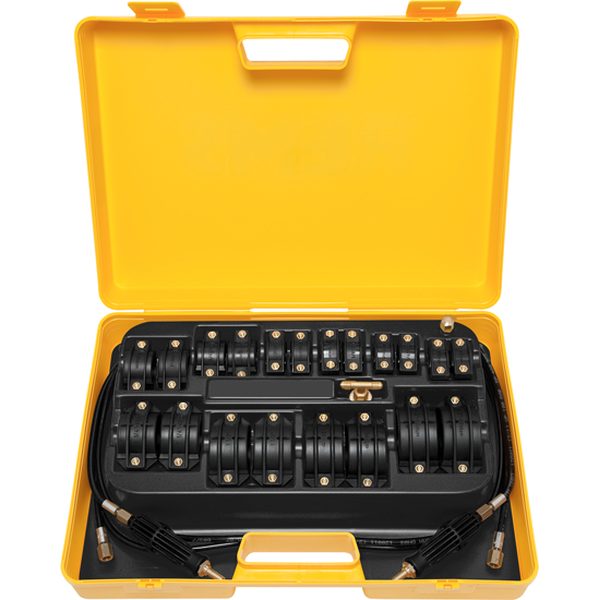

eskimo 1 8 rems 130002 r 30551 0 main600

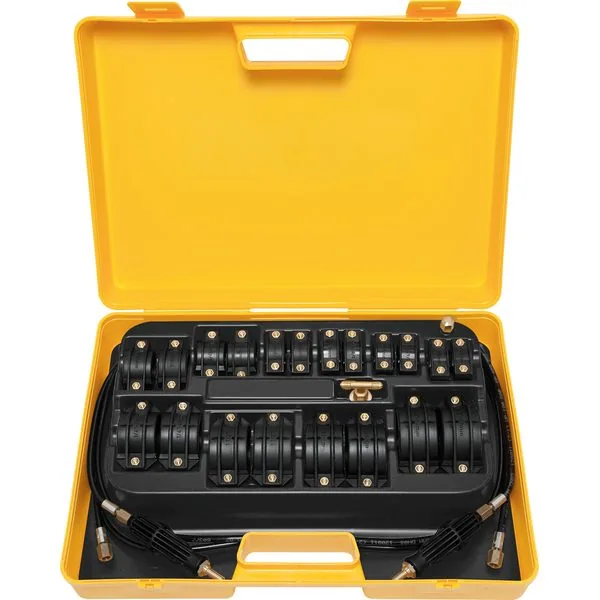

The set is supplied with two freeze collars for each of ten sizes, a bottle connector with T-distributor, closing nut, two injector handles, two high-pressure hoses, and a durable plastic case. The freezing process utilizes liquid CO2 to create dry ice at -79°C, forming a solid ice plug inside the pipe that can withstand pressures up to approximately 500 bar. This allows for safe isolation of pipe sections during repairs or modifications.

Operation requires strict adherence to CO2 safety protocols, including continuous ventilation, use of eye and hand protection, and only using CO2 cylinders equipped with a dip tube. The noise level at the workplace is 75 dB(A). Freezing times and CO2 consumption depend on pipe material and diameter, with detailed reference tables provided in the manual.

Eskimo Set 1/8-2"/10-60 mm REMS 130002 R

Technical Specifications

This section covers the core technical parameters and features of the Eskimo Set 1/8-2"/10-60 mm REMS 130002 R. The device is designed for reliability and versatility in professional pipe maintenance tasks.

Pipe compatibility: Steel, copper, plastic, composite pipes
Pipe diameter range: 1/8"–2" (10–60 mm)
Freeze collars: 2 per size, 10 sizes included
Ice plug pressure resistance: approx. 500 bar
Refrigerant: Carbon dioxide (CO2), liquid withdrawal using dip tube cylinders
Noise emission at workplace: 75 dB(A)
Kit contents: Freeze collars, T-distributor, closing nut, injector handles, high-pressure hoses, plastic case

The system is optimized for use with large CO2 cylinders to ensure sufficient refrigerant supply. The robust construction and comprehensive accessory set support a wide range of pipe diameters and materials.

Freezing Times and CO2 Consumption

Freezing times and CO2 usage vary by pipe material and diameter. The following table summarizes typical values at 20°C water temperature:

10/12 mm steel: 1 min, 60 g CO2
10/12 mm copper: 1 min, 65 g CO2
54 mm copper: 24 min, 1450 g CO2
60 mm steel: 29 min, 1900 g CO2

Plastic pipes generally require longer freezing times and higher CO2 consumption, depending on the specific material. The manual provides a complete table for all supported sizes and materials.

Common Applications

This pipe freezing set is widely used for maintenance, repair, and modification of pressurized water and heating systems. It is especially valuable in situations where draining the system is impractical or would cause significant disruption. Typical users include plumbing and HVAC professionals, facility maintenance teams, and industrial service providers.

Manual and Technical Content

The instruction manual details all safety, setup, and operational procedures. Key points include:

Always use CO2 cylinders with a dip tube for liquid withdrawal
Ensure continuous ventilation and use personal protective equipment
Do not use in confined, unventilated spaces due to suffocation risk
Secure gas cylinders during transport and operation
Monitor freezing times and CO2 consumption as per the provided tables
Change CO2 cylinders within 7 minutes to prevent melting of the ice plug
Dispose of the device according to legal requirements at end of life

The manual also provides troubleshooting guidance, such as checking for proper freezing times, ensuring pumps are off, and cleaning injector filters if necessary. Warranty coverage is 12 months from delivery to the first user, covering manufacturing and material defects only when serviced by authorized centers.

Manual Summary: The Eskimo Set 1/8-2"/10-60 mm REMS 130002 R is a professional-grade pipe freezing system designed for use with CO2 refrigerant. It enables safe, efficient isolation of pipes without draining, supporting a wide range of diameters and materials. The system must be operated with strict adherence to CO2 safety protocols, including ventilation, protective equipment, and proper cylinder handling. The manual provides detailed instructions for setup, operation, troubleshooting, and maintenance, ensuring reliable performance and user safety.

Specifications

Pipe compatibility: Steel, copper, plastic, composite
Pipe diameter range: 1/8"–2" (10–60 mm)
Freeze collars: 2 per size, 10 sizes included
Ice plug pressure resistance: approx. 500 bar
Refrigerant: Carbon dioxide (CO2), liquid withdrawal (dip tube required)
Noise emission at workplace: 75 dB(A)
Kit contents: Freeze collars, T-distributor, closing nut, injector handles, high-pressure hoses, plastic case
Typical freezing times (20°C water): 10 mm steel: 1 min/60 g CO2, 54 mm copper: 24 min/1450 g CO2, 60 mm steel: 29 min/1900 g CO2
CO2 cylinder change during operation: max 7 minutes

Optional Accessories

SKU	Price VNĐ	Product name & short description

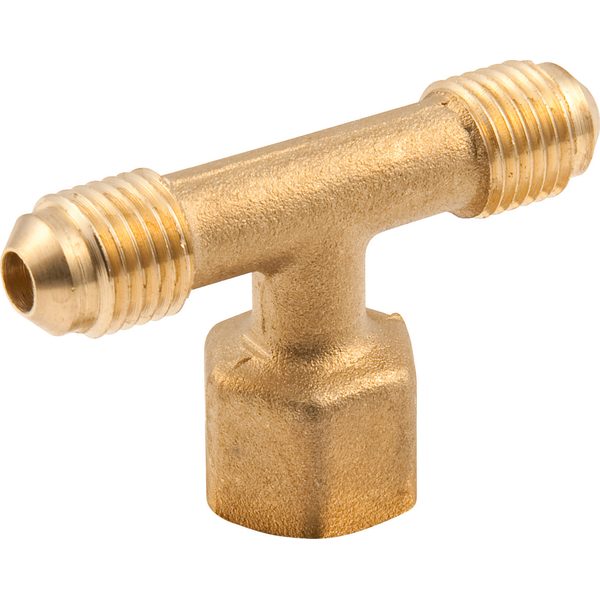

130207	1.023.000	T-distrib. for 3rd frz. collar REMS 130207 T-Verteiler für 3.Manschette für REMS Eskimo

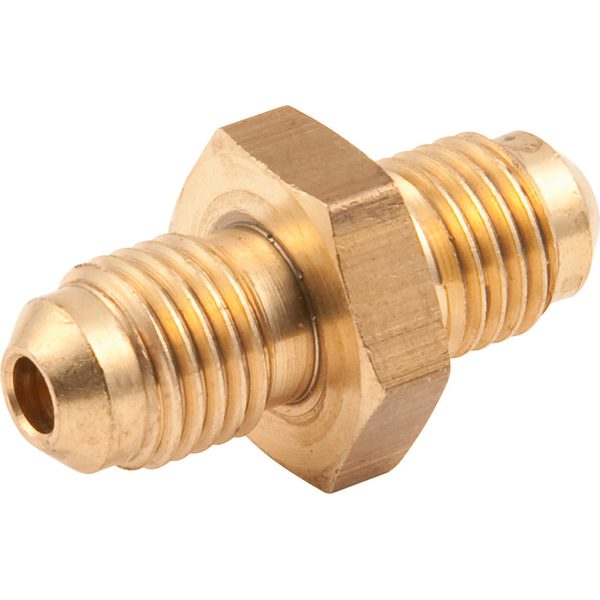

130208	389.000	Double nipple REMS 130208 Doppelnippel für REMS Eskimo

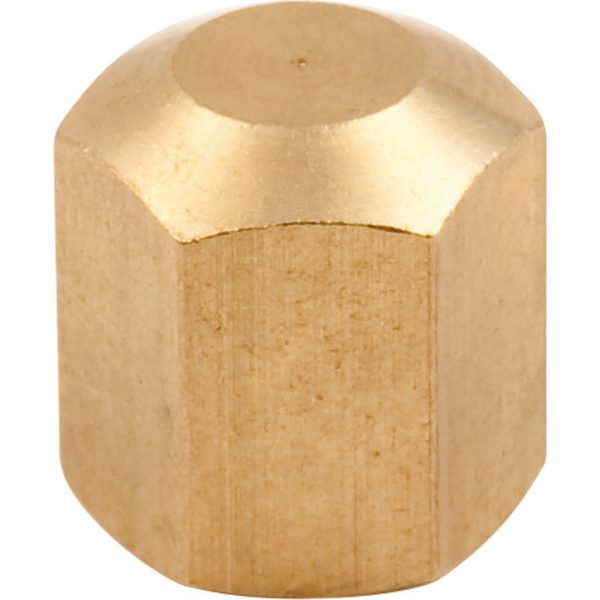

130209	251.000	Closing nut REMS 130209 Verschlußmutter für REMS Eskimo

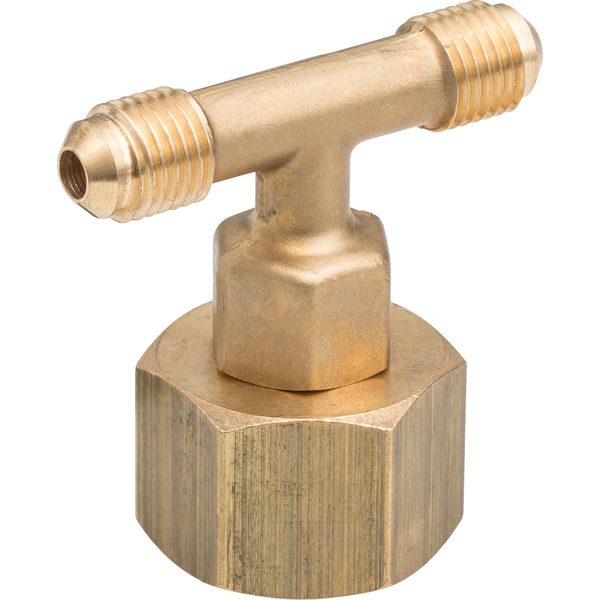

130383	1.892.000	Bottle conn. +T-distr.+choke REMS 130383 Flaschenanschluss mit T-Verteiler für REMS Eskimo.

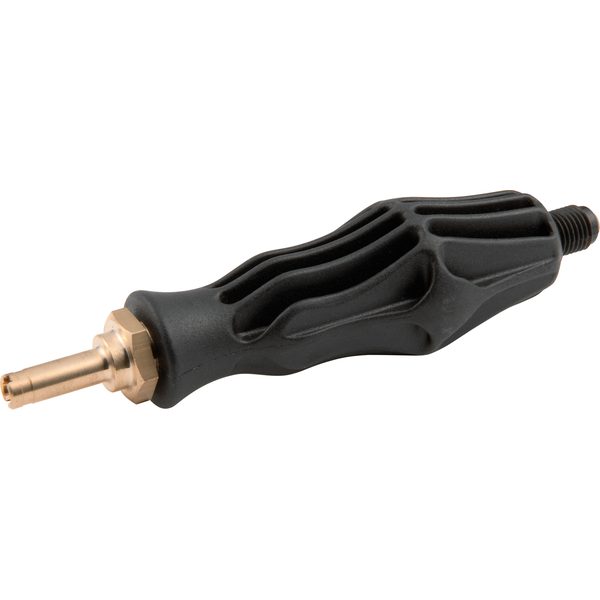

130410	2.226.000	Handle piece w.injector nozzle REMS 130410 Griffstück m. Injektordüse für REMS Eskimo

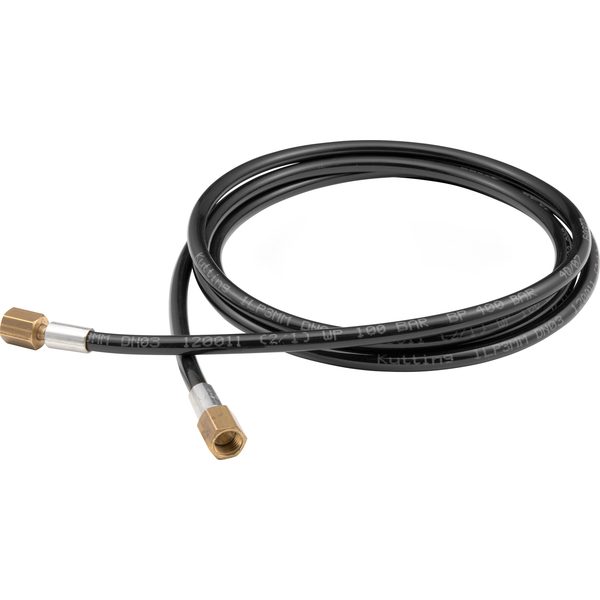

130415	4.652.000	High-pressure hose 2,5 m REMS 130415 Hochdruckschlauch 2,5m für REMS Eskimo

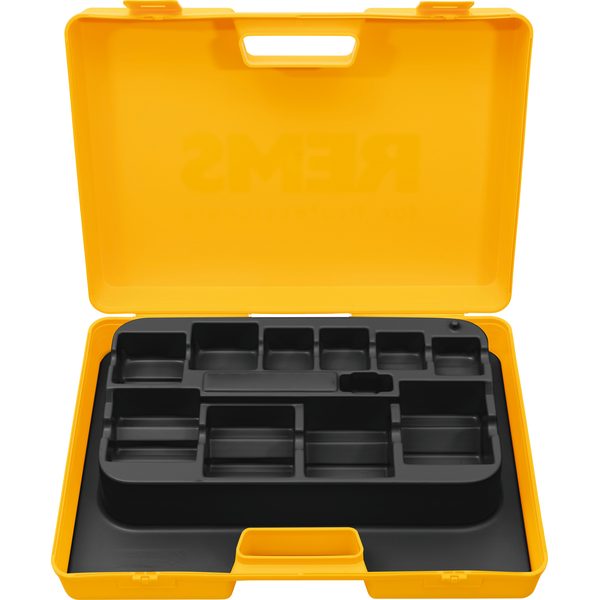

130430 R	4.112.000	Plastic carrying case w/insert REMS 130430 R Koffer mit Einlage für REMS Eskimo

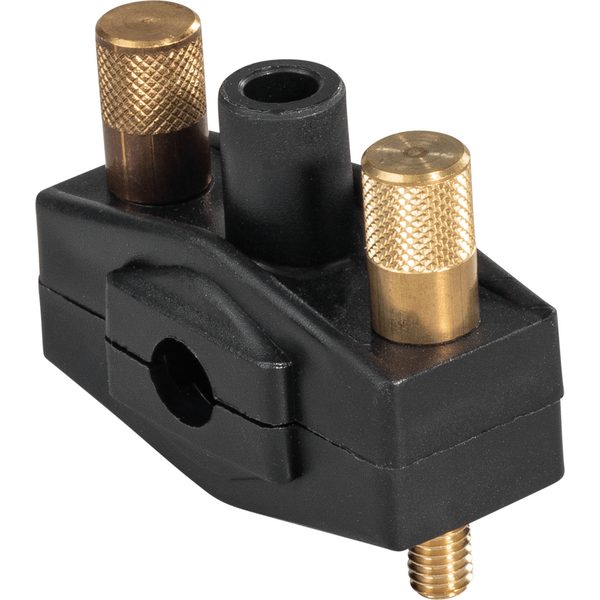

130450	1.621.000	Freeze collar 1/8"/12 mm REMS 130450 Einfriermanschette 1/8""/12 mm für REMS Eskimo
