Phần kẹp cho bàn hàn TW

Name: Phần kẹp cho bàn hàn TW
Brand: BESSEY
SKU: TW22-20-10-2K
Price: 2202000.0 VND
Availability: OutOfStock

★ 0.0 (0 đánh giá) • Đã bán 0

Nhập khẩu từ: Đức

TW16 + TW22: Clamping force up to 3,000 N, TW28: Clamping force up to 5,000 N Precise, individual clamping Tempered profile and sliding arm for sprung and elast

SKU: TW22-20-10-2K

2.202.000 đ

Trạng thái kho: Hết hàng

Giá đã bao gồm VAT

Tải catalogue PDF

Mô tả

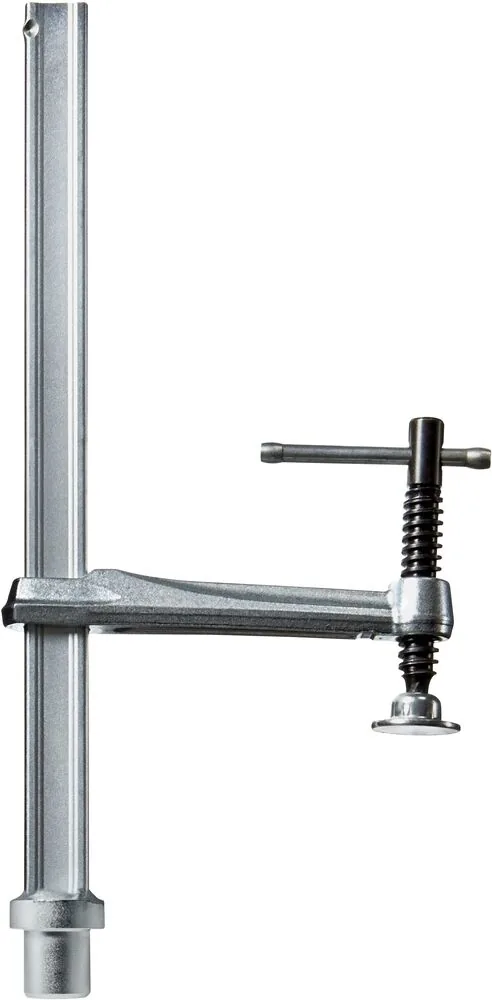

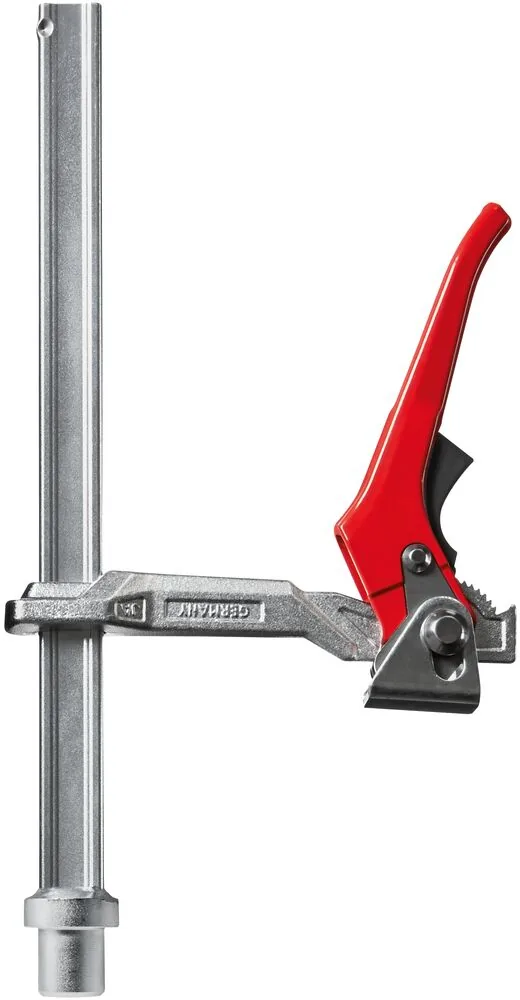

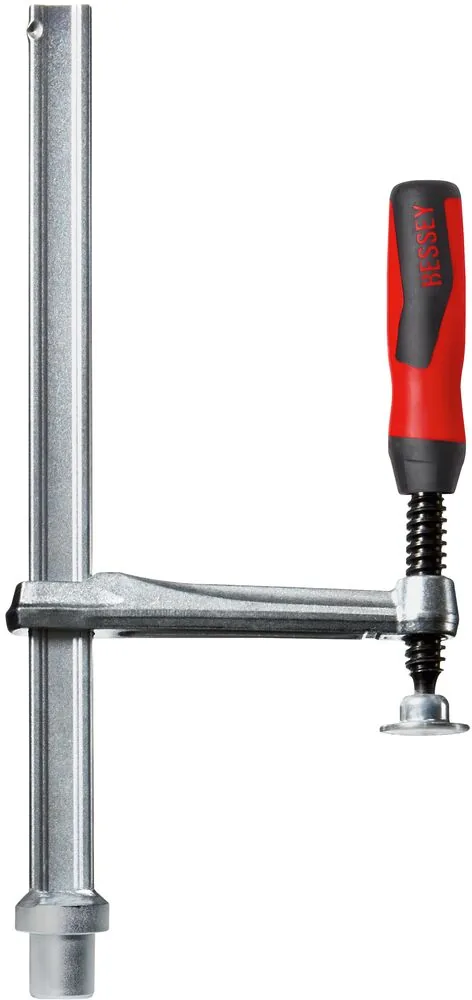

Clamping element with fixed throat depth TW TW16 + TW22: Clamping force up to 3,000 N, TW28: Clamping force up to 5,000 N Precise, individual clamping Tempered profile and sliding arm for sprung and elastic clamping Various design versions: High quality 2-component plastic handle and tommy bar with rounded ends – each with smooth-running trapezoidal threaded spindle and tool-free pressure plate replacement Lever handle with an indexing mechanism for controlled, fast and vibration-proof clamping TW22: Compatible with Barth and Beck lift tables TW16 + TW22: Clamping force up to 3,000 N, TW28: Clamping force up to 5,000 N Precise, individual clamping Tempered profile and sliding arm for sprung and elastic clamping Various design versions: High quality 2-component plastic handle and tommy bar with rounded ends – each with smooth-running trapezoidal threaded spindle and tool-free pressure plate replacement Lever handle with an indexing mechanism for controlled, fast and vibration-proof clamping TW22: Compatible with Barth and Beck lift tables Flexible throat depth BESSEY TWV clamping elements for welding tables not only have infinitely adjustable throat depth, but are also available in 3 handle variants.

100, 120 mm or 140 mm throat depth On BESSEY TW clamping elements, you can choose among 3 handle variants and 3 throat-depth variants. Heavy‐duty, custom design The TWM28 clamping element has a heat‐resistant special pressure plate with sintered steel insert, which can be pivoted up to 35°.

On the TW28GRS gripping arm variant the spindle is located on the outside, which enables – among other things – free access to the work area.

Perfect for railings Whether the workpiece is round, oval or square, the TWVAD Vario table clamping attachments are ideally suited Metal construction Locksmith work Self-welding from the specialists in clamping tools Rail and sliding bracket made of tempered steel, galvanised Spindle with trapezoidal thread in tempered, rolled steel, phosphated Handle made of 2-component plastic Toggle made of steel, galvanised Pressure plate made of steel, phosphated

Specification	Value
Bolt (mm)	22
Opening (mm)	200
Throat depth (mm)	100
Rail (mm)	22x8,5
Weight (kg)	0.995

Phụ kiện tùy chọn

	SKU	Hình	Giá VNĐ	Tên sản phẩm & mô tả ngắn
	VAD		3.338.000	Miếng đệm đa góc Điều chỉnh từ 60° trong đến 60° ngoài. Phù hợp với kẹp TG, GZ, GMZ từ 100 mm. Bề mặt kẹp 45 mm, bộ 2 chiếc, trọng lượng 0,48 kg. Thân nhôm anot hóa, đĩa ép thép
	TW16AW-		700.000	Bộ chuyển đổi bàn làm việc TW16AW Phụ kiện chuyển đổi lỗ Ø16mm thành các lỗ to hơn cho bàn thợ mộc. Bàn thợ mộc thường có các lỗ cố định để gắn các công cụ, nếu lỗ không đúng cần chuyển đổi
